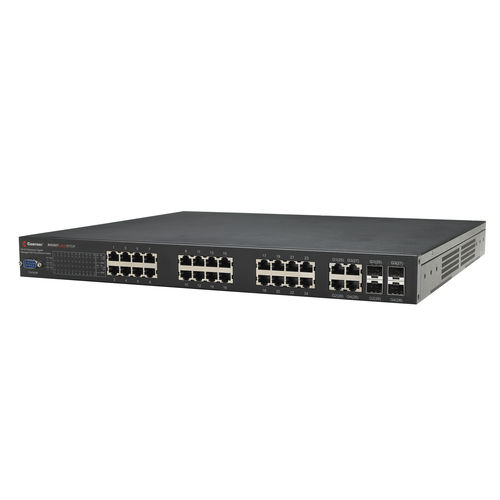

Managed switch RocketLinx® ES7528

28 portsgigabitPoE

RocketLinx® ES7528Limited Availability -- please contact the Pepperl+Fuchs Comtrol sales team for additional information. Managed Power over Ethernet Industrial managed switch, 24 PoE Plus ports and four Gigabit Ethernet combo ports, IEEE 802.3af and IEEE 802.3at compliant.Part Number: 32040-1 24 10/100BASE-TX, 4 Gigabit uplink/4 SFP ports RoHS 2 compliant under CE 24 ports support both 15.4W IEEE 802.3af and 30W high power IEEE 802.3at, including 2-event and LLDP classification IEEE 802.3at and IEEE 802.3af with max. 30W per port Flexible-bandwidth and long-distance fiber data transmission via SFP transceivers LPLD for reliable PoE connection through Active Powered Device status detection and auto reset function 12.8G Non-Blocking backplane and 16K MAC table IEEE 1588 PTP compliance for precise time synchronization Advanced Redundant ring capabilities for aggregating up to 12 x 100Mb rings plus 2 Gigabit rings Supports up to 9,216 bytes Jumbo Frame for large file transmission Optimized IGMP Query v1/v2 and IGMP Snooping v1/v2/v3 for advanced multicast filtering Supports up to 255 VLANs for traffic isolation Advanced network management features including SNMP and PortVision DX Supports DHCP client/server and DHCP Option 82 for automatic IP configuration Dual redundant low input voltage range: 48VDC (46-57VDC) and HDC range: 100-250VAC, 47-63Hz, 4A IP31 rugged aluminum case with superior heat dispersal IPv6 support
