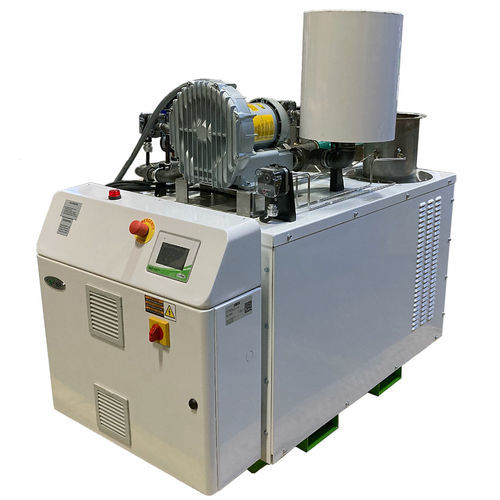

Natural gas air heater unit GasTrac™ CGTindustrialceramic
Add to favorites
Compare this product
Characteristics
- Power source
- natural gas
- Applications
- industrial
- Other characteristics
- ceramic
Description
Overview
The GasTrac CGT process air heater family (models 150–700) uses natural gas combustion to provide controlled drying air for resin and polymer drying applications. Designed for retrofit to existing electric dryers, the GasTrac delivers indirect heating through a heat exchanger to prevent process-air contamination while reducing operating energy costs relative to electric resistance heaters.
Key features
Frequently asked items
Resources
Application
The GasTrac CGT replaces electric resistance heaters to dry resin and polymer materials. It is intended as a cost-effective natural gas retrofit solution for existing drying systems seeking lower operating costs and stable drying temperatures.
Technical specifications
The GasTrac CGT process air heater family (models 150–700) uses natural gas combustion to provide controlled drying air for resin and polymer drying applications. Designed for retrofit to existing electric dryers, the GasTrac delivers indirect heating through a heat exchanger to prevent process-air contamination while reducing operating energy costs relative to electric resistance heaters.
Key features
- Ceramic/fiber matrix burner for high heat transfer with very low emissions
- Indirect heating: process air is heated around a heat exchanger and never contacts combustion airflow
- Compact, space-saving design to simplify installation and placement
- Retrofit-capable to replace electric resistance heaters on existing drying systems
Frequently asked items
- Clean radiant heat burning — Ceramic/fiber matrix burner couples efficient heat transfer with low emissions.
- Space-saving construction — Compact footprint allows flexible placement in production areas.
- Unique airflow system — Process airflow is heated indirectly around the heat exchanger and never mixes with combustion gases, avoiding contamination of the dried resin.
Resources
- GasTrac with DC-B Control Manual
- Full Equipment Catalog
- Full Spec Sheet (TPDX009-0524 GasTrac Process Air Heater, PDF)
Application
The GasTrac CGT replaces electric resistance heaters to dry resin and polymer materials. It is intended as a cost-effective natural gas retrofit solution for existing drying systems seeking lower operating costs and stable drying temperatures.
Technical specifications
- Denomination: GasTrac CGT family (models covering a range: 150–700)
- Fuel: natural gas
- Burner type: ceramic/fiber matrix burner (low emissions)
- Heating method: indirect via heat exchanger (process air does not contact combustion air)
- Design: compact, space-saving construction
- Primary benefits: reduced energy cost vs. electric resistance heaters; consistent drying temperatures; retrofit-capable
- Documentation: Full spec sheet TPDX009-0524 and GasTrac with DC-B Control Manual
