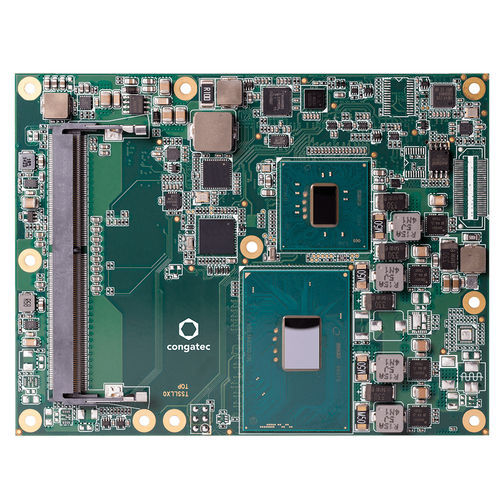

COM Express computer-on-module conga-TS175
Intel® Xeon® Processor E3-1505L v6Intel® Core i5Intel® Core i3

COM Express computer-on-module
COM Express computer-on-module
COM Express computer-on-module
Add to favorites
Compare this product


Characteristics

Form factor
COM Express
Processor
Intel® Xeon® Processor E3-1505L v6, Intel® Core i5, Intel® Core i3, 7th Generation Intel® Core™ i7, Intel® Core™ i3-7100U
Ports
VGA, DisplayPort, USB 2.0, USB 3.0, PCI Express
Operating system
Linux, Yocto, Windows 10
Other characteristics
embedded

Description

COM Express Type 6 Basic module based on 7th Generation Intel® Core™ processor family 7th Generation Intel® Core™ processor Intel® Xeon® processors for data center applications Intel® Optane™ memory can be connected via PCI Express Gen 3.0 ECC memory support Up to 32 GByte dual channel DDR4 memory congatec Board Controller Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | LVDS backlight control I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control embedded BIOS Features AMI AptioV® UEFI 2.x firmware 8/16 MByte serial SPI firmware flash Security The conga-TS175 can be optionally equipped with a discrete ”Trusted Platform Module” (TPM 1.2 / 2.0) Power Management ACPI 4.0 with battery support Temperature Operating: 0 to +60°C Storage: -20 to +70°C Humidity Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond. Video Interfaces 3x DDI / DisplayPort 1.2 with support for Multi-Stream Transport (MST) | resolutions up to 4k Dual channel LVDS transmitter, Supports flat panels 2x24 Bit interface | VESA and openLDI colour mappings | resolutions up to 1920x1200 Automatic Panel Detection via EDID/EPI 1 x VGA (optional)
