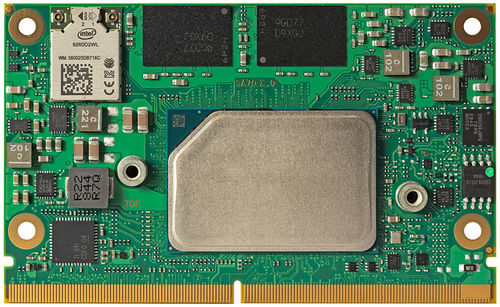

SMARC 2.1 module based on Intel® Atom® x6000E and Intel® Pentium® and Celeron® J Series processors
High performance Intel® UHD Graphics (Gen11)
Options for Industrial Temperature Range -40°C to 85°C
Options for Time Sensitive Networking and Time Coordinated Computing for improved Realtime Capability
Up to 4.267 MT/s Memory Support
congatec Board Controller
Multistage watchdog | non-volatile user data storage | manufacturing and board Information | board statistics | fast mode and multi-master I²C bus | power loss control
embedded BIOS Features
AMI Aptio UEFI
32 MByte serial SPI firmware flash
OEM Logo
OEM CMOS Defaults
LCD Control
Display Auto Detection
Backlight Control
Flash Update
Power Management
ACPI 5 .0 compliant, Smart Battery Management
Humidity
Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond.
Video Interfaces
Dual channel LVDS transmitter | support for flat panels with 2x24 bit data mapping up to a resolution of 1920x1200 @60Hz | shared with eDP or 1x MIPI-DSI x4 (option)
DP++
Size
82 x 50 mm (3,23” x 1,97”)
