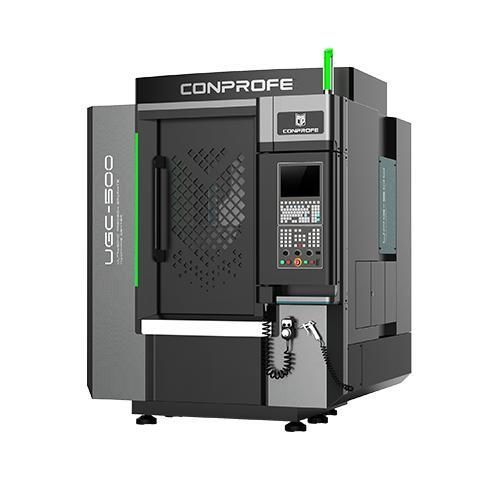

3-axis CNC machining center UGC-500verticalfor ceramicscarbon fiber-reinforced composites
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Machined material
- carbon fiber-reinforced composites, for ceramics
- Structure
- gantry
- Number of tool stations
- 12 tools, 14 tools
- Other characteristics
- high-power, high-precision, high-rigidity, ultrasonic
- X travel
500 mm
(19.69 in)- Y travel
400 mm
(15.75 in)- Z travel
230 mm
(9.06 in)- Rotational speed
24,000 rpm, 30,000 rpm, 32,000 rpm, 40,000 rpm
(150,796 rad.min-1, 188,496 rad.min-1, 201,062 rad.min-1, 251,327 rad.min-1)- Power
7.5 kW, 8 kW
(10.2 hp, 10.88 hp)- Work feed X-axis
10 m/min
- Work feed Y-axis
10 m/min
- Work feed Z-axis
10 m/min
- Positioning accuracy
0.003 mm
(0.00012 in)- Repeatability
0.002 mm
(0.00008 in)- Weight
3,500 kg
(7,716.18 lb)- Overall length
1,805 mm
(71.1 in)- Overall width
1,890 mm
(74.4 in)- Overall height
2,350 mm
(92.5 in)
Description
Product Overview
Sealing
Product Highlights
Application Cases
Technical specifications
- Rigid integrated gantry frame with a large-section crossbeam for enhanced structural stability
- Cast components optimized by FEM to reduce deformation and increase rigidity across the assembly
- High-rigidity linear roller guides and a permanent-magnet synchronous spindle with high power; variable-frequency chiller to maintain stable spindle thermal expansion
Sealing
- X/Y-axis: multi-layer bellows, sheet-metal labyrinth and positive-pressure airflow sealing; Z-axis: annular bellows
- Tool magazine: fully enclosed armored bellows with air-blow cleaning for holders
- Electrical cabinet: fully sealed with gasket strips and air-conditioned cooling
- Spindle: multi-stage sealing including labyrinths, positive-pressure airflow and sealing rings
Product Highlights
- Integrated gantry design with large-section crossbeam for consistent rigidity
- FEM-optimized castings to limit part and assembly deformation
- High-capacity dust extraction with multiple inlets and handheld internal cleaning tool
- Stainless-steel sheet-metal base to reduce dust adhesion
- Multi-layer bellows and sheet-metal labyrinths to protect linear roller guides from contamination
Application Cases
- Engineered for high-precision, high-efficiency machining of graphite, green ceramics, carbon-fiber composites and other hard-brittle or difficult-to-cut materials
Technical specifications
- Model: UGC-500A｜B
- X/Y/Z-Axis Travel: 500x400x230 mm
- Worktable Dimension: 500x400 mm
- Max. Load of Worktable: 200 kg
- Ultrasonic Spindle: Standard
- Spindle Diameter: Φ100｜Φ120 mm
- Max. Spindle Speed (Short-Duration): 40,000｜30,000 rpm
- Max. Spindle Speed (Long-Duration): 32,000｜24,000 rpm
- Rated Power: 8｜7.5 kW
- X/Y/Z-Axis Rapid Speed: 15/15/15 m/min
- X/Y/Z-Axis Max. Feed Speed: 10/10/10 m/min
- X/Y/Z-Axis Positioning Accuracy: 0.003 mm
- X/Y/Z-Axis Repeatability: 0.002 mm
- Tool Magazine Type: Umbrella Type
- Tool Holding Capacity: 14｜12 (No. of Tools)
- Total Weight (incl. Accessories): 3,500 kg
- Machine Size (LxWxH): 1,805x1,890x2,350 mm
- CNC Controller: SIEMENS 828D-280
- Protection: Three-layer protection
