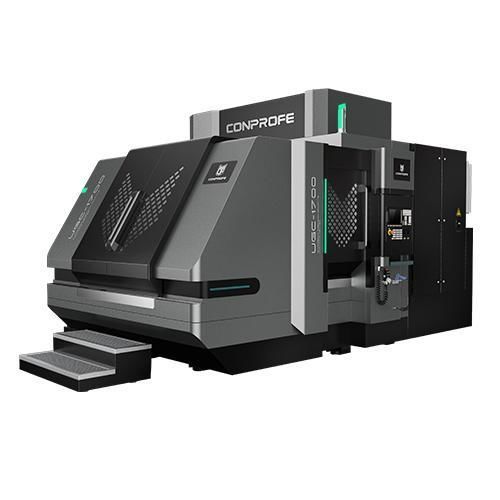

Vertical CNC machining center UGC-1700

for ceramicscarbon fiber-reinforced compositesgantry

Product Overview

• Rigid integrated gantry frame with large-section crossbeam designed for reduced deformation and high structural stiffness.
• Casting structure optimized by finite element analysis (FEM) to control part and whole-machine deformation and natural frequency.
• High-rigidity linear roller guides and permanent magnet synchronous electric spindle; variable-frequency water chiller to stabilize spindle thermal expansion. Ultrasonic spindle available as standard.
• Comprehensive sealing and protection: multi-layer bellows and sheet metal labyrinths on X/Y/Z axes, enclosed tool magazine with armored bellows and air-blowing cleaning function, fully sealed electrical cabinet with air-conditioned cooling, and multiple spindle sealing methods.

Product Highlights

• Integrated gantry frame with large-section crossbeam for improved rigidity.
• FEM-optimized casting design to minimize deformation under load.
• High-rigidity linear roller guide system and high-power permanent magnet synchronous spindle options (Φ100/Φ120/Φ150).
• Variable-frequency water chiller for spindle thermal control and high-power dust collection with multiple inlets plus handheld cleaning for internal passages.
• Multi-layer bellows and sheet metal labyrinth sealing to protect linear roller guides from dust and contamination.

Application Cases

• Designed for high-precision, high-efficiency machining of graphite, green ceramics, carbon-fiber composites, hard-brittle materials, composite materials and difficult-to-cut metals.

Technical Parameters (table)
Item | UGC-1700A｜B｜C | Unit
X/Y/Z-Axis Travel | 1,700x1,200x300 | mm
Worktable Dimension | 1,700x1,200 | mm
Max. Load of Worktable | 1,500 | kg
Ultrasonic Spindle | Standard | /
Spindle Diameter | Φ100｜Φ120｜Φ150 | mm
Max. Spindle Speed (Short-Duration) | 40,000｜30,000｜20,000 | rpm
Max. Spindle Speed (Long-Duration) | 32,000｜24,000｜16,000 | rpm
Rated Power | 6｜7.5｜20 | kW
X/Y/Z-Axis Rapid Speed | 15/15/24 | m/min
X/Y/Z-Axis Max. Feed Speed | 10/10/10 | m/min
X/Y/Z-Axis Positioning Accuracy | 0.003 | mm
X/Y/Z-Axis Repeatability | 0.002 | mm
Tool Magazine Type | Disc Type｜Disc Type｜Chain Type | /
Tool Holding Capacity | Non-Ultrasonic: 24｜24｜40 Ultrasonic: 24｜24｜20 | No. of Tools
Total Weight (incl. Accessories) | 13,000 | kg
Machine Size (LxWxH) | 4,660x3,350x2,910 | mm
CNC Controller | SIEMENS 828D-280 | /
Protection | Three-Layer Protection | /

Technical Specifications

• Model: UGC-1700
• Frame: Rigid integrated gantry with large-section crossbeam
• Guide type: High-rigidity linear roller guide
• Spindle: Permanent magnet synchronous electric spindle; Ultrasonic spindle standard
• Spindle diameters available: Φ100, Φ120, Φ150
• Spindle speeds (short/long): up to 40,000 / 32,000 rpm (varies by spindle)
• Rated power options: 6 / 7.5 / 20 kW
• Travel (X/Y/Z): 1,700 x 1,200 x 300 mm
• Worktable size: 1,700 x 1,200 mm; Max load 1,500 kg
• Tool capacity: Non-Ultrasonic up to 24 / 24 / 40 depending on variant; Ultrasonic configurations up to 24 / 24 / 20 depending on variant
• CNC controller: SIEMENS 828D-280
• Protection/sealing: multi-layer bellow protections, sheet metal labyrinth, positive pressure airflow, sealing rings, fully sealed electrical box with air-conditioned cooling
• Machine weight: 13,000 kg
• Machine dimensions (LxWxH): 4,660 x 3,350 x 2,910 mm
