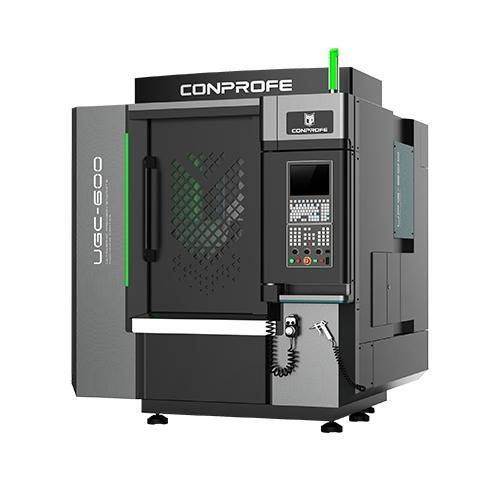

3-axis CNC machining center UGC-600

verticalfor ceramicscarbon fiber-reinforced composites

Product Overview

• Rigid integrated gantry frame with a large-section crossbeam design for structural stability
• Optimized cast structure developed using FEM to minimize deformation and improve stiffness
• High-rigidity linear roller guides and high-power permanent magnet synchronous spindle; variable-frequency water chiller for controlled spindle thermal expansion
• Comprehensive sealing system:
  - Lead screw / linear guide protection: X/Y-axis multi-layer bellows, sheet-metal labyrinth and positive-pressure airflow; Z-axis annular bellows
  - Tool magazine: fully enclosed armored bellows with air-blowing for tool-holder cleaning
  - Electrical cabinet: fully sealed with sealing strips and air-conditioned cooling
  - Spindle: multi-stage sealing including labyrinth, positive-pressure airflow and sealing rings

Key Features

• Integrated gantry frame with large-section crossbeam for high rigidity
• FEM-optimized casting to reduce part and machine deformation
• High-power permanent magnet synchronous spindle and high-rigidity linear roller guides
• Variable-frequency water chiller to stabilize spindle temperature during production
• High-capacity dust collection with multiple inlets; handheld cleaner for internal channels; stainless-steel sheet-metal base to reduce dust adhesion
• Multi-layer bellows and sheet-metal labyrinth protections to prevent contamination of linear guides

Applications

• Designed for high-precision, high-efficiency machining of graphite, green ceramics, carbon-fiber composites, hard-brittle materials and difficult-to-cut metals

Technical Parameters
Item: UGC-600A｜B｜C
X/Y/Z-Axis Travel: 600 x 500 x 250 mm
Worktable Dimension: 620 x 560 mm
Max. Load of Worktable: 300 kg
Ultrasonic Spindle: Standard
Spindle Diameter: Φ100｜Φ120｜Φ150 mm
Max. Spindle Speed (Short-Duration): 40,000｜30,000｜20,000 rpm
Max. Spindle Speed (Long-Duration): 32,000｜24,000｜16,000 rpm
Rated Power: 6｜7.5｜20 kW
X/Y/Z-Axis Rapid Speed: 15/15/15 m/min
X/Y/Z-Axis Max. Feed Speed: 10/10/10 m/min
X/Y/Z-Axis Positioning Accuracy: 0.003 mm
X/Y/Z-Axis Repeatability: 0.002 mm
Tool Magazine Type: Umbrella Type
Tool Holding Capacity: 15｜13｜9 (No. of Tools)
Total Weight (incl. Accessories): 5,000 kg
Machine Size (LxWxH): 1,950 x 2,100 x 2,390 mm
CNC Controller: SIEMENS 828D-280
Protection: Three-layer protection and multi-layer bellows
