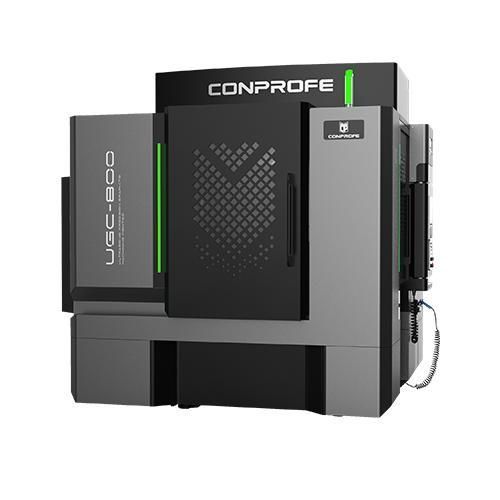

3-axis CNC machining center UGC-800verticalfor ceramicscarbon fiber-reinforced composites
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Machined material
- carbon fiber-reinforced composites, for ceramics
- Structure
- gantry
- Applications
- for graphite machining
- Other characteristics
- high-power, high-precision, high-rigidity, ultrasonic
- X travel
800 mm
(31.5 in)- Y travel
800 mm
(31.5 in)- Z travel
300 mm
(11.81 in)- Rotational speed
Min.: 16,000 rpm
(100,531 rad.min-1)Max.: 40,000 rpm
(251,327 rad.min-1)- Power
6 kW, 7.5 kW, 20 kW
(8.16 hp, 10.2 hp, 27.19 hp)- Work feed X-axis
10 m/min
- Work feed Y-axis
10 m/min
- Work feed Z-axis
10 m/min
- Table load capacity
1,000 kg
(2,205 lb)- Positioning accuracy
0.003 mm
(0.00012 in)- Repeatability
0.002 mm
(0.00008 in)- Weight
9,000 kg
(19,841.6 lb)- Overall length
2,990 mm
(117.7 in)- Overall width
2,935 mm
(115.6 in)- Overall height
2,875 mm
(113.2 in)
Description
Product Overview
Product Highlights
Application Cases
Technical Parameters
Technical Specifications
- Rigid integrated gantry frame with large-section crossbeam and FEM-optimized casting to increase stiffness and reduce deformation.
- High-rigidity linear roller guides and high-power permanent magnet synchronous spindle; variable-frequency water chiller to control spindle thermal expansion.
- Comprehensive sealing: multi-layer bellows and sheet-metal labyrinths on X/Y, annular bellows on Z, fully sealed electrical cabinet with air-conditioned cooling, multiple spindle sealing methods.
- Tool magazine protection with armored bellows and air-blow function; handheld dust collector and high-power dust extraction with multiple inlets; stainless steel base to reduce dust adhesion.
Product Highlights
- Gantry frame design for high rigidity and stability under heavy loads.
- FEM-designed cast structure to minimize vibration and deformation.
- High-speed spindle options and high-rigidity linear roller guides for precision machining.
- Variable-frequency water chiller for consistent spindle thermal behavior.
- Multi-point dust extraction and onboard cleaning tools to limit contamination when machining brittle materials.
Application Cases
- Designed for high-precision, high-efficiency machining of graphite, green ceramics, carbon-fiber composites and other hard-brittle or difficult-to-cut materials.
Technical Parameters
- Item: UGC-800A｜B｜C
- X/Y/Z-Axis Travel: 800 x 800 x 300 mm
- Worktable Dimension: 850 x 850 mm
- Max. Load of Worktable: 1,000 kg
- Ultrasonic Spindle: Standard
- Spindle Diameter: Φ100｜Φ120｜Φ150 mm
- Max. Spindle Speed (Short-Duration): 40,000｜30,000｜20,000 rpm
- Max. Spindle Speed (Long-Duration): 32,000｜24,000｜16,000 rpm
- Rated Power: 6｜7.5｜20 kW
- X/Y/Z-Axis Rapid Speed: 24/24/24 m/min
- X/Y/Z-Axis Max. Feed Speed: 10/10/10 m/min
- X/Y/Z-Axis Positioning Accuracy: 0.003 mm
- X/Y/Z-Axis Repeatability: 0.002 mm
- Tool Magazine Type: Disc Type｜Disc Type｜Chain Type
- Tool Holding Capacity: Non-Ultrasonic: 24｜24｜40; Ultrasonic: 24｜24｜20
- Total Weight (incl. Accessories): 9,000 kg
- Machine Size (L x W x H): 2,990 x 2,935 x 2,875 mm
- CNC Controller: SIEMENS 828D-280
- Protection: Three-layer sealing (bellows, sheet-metal labyrinths, positive-pressure airflow)
Technical Specifications
- Model: UGC-800
- X/Y/Z-Axis Travel: 800 x 800 x 300 mm
- Worktable Dimension: 850 x 850 mm
- Max. Worktable Load: 1,000 kg
- Spindle Diameter Options: Φ100, Φ120, Φ150 mm
- Max. Spindle Speed (Short-Duration): up to 40,000 / 30,000 / 20,000 rpm
- Max. Spindle Speed (Long-Duration): up to 32,000 / 24,000 / 16,000 rpm
- Rated Spindle Power: 6 / 7.5 / 20 kW
- Rapid Speed (X/Y/Z): 24 m/min each
- Max. Feed Speed (X/Y/Z): 10 m/min each
- Positioning Accuracy (X/Y/Z): 0.003 mm
- Repeatability (X/Y/Z): 0.002 mm
- Tool Magazine: Disc or Chain types (variant dependent)
- Tool Capacity: Non-Ultrasonic: 24 / 24 / 40; Ultrasonic: 24 / 24 / 20
- Total Weight (with accessories): 9,000 kg
- Machine Footprint (L x W x H): 2,990 x 2,935 x 2,875 mm
- CNC Controller: SIEMENS 828D-280
- Protection / Sealing: Multi-layer bellows, sheet-metal labyrinths, positive-pressure airflow, sealed electrical cabinet with air-conditioned cooling, multiple spindle sealing methods
