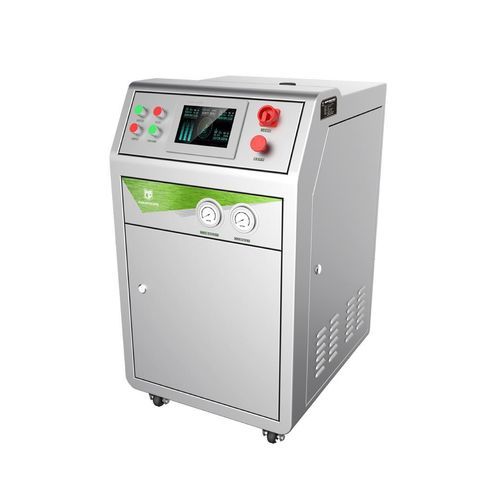

Machine tool coolant system ScCO2

Product Overview

• Self-developed patented product
• Recognized as Guangdong Top-Famous High-tech Product
• Part of the National Key R&D Program project "Key Generic Technologies of Clean Machining"

Application Cases
The ScCO2 Cooling solution supports ultrasonic machining of hard-brittle materials, composite materials and difficult-to-cut metals to enable more sustainable and controlled production processes.

• Silicon nitride aircraft front-end component
• Glass-ceramic telescope lens
• Superalloy blisk

Technical Parameters

• Models: CEA401 / CIA401 / CMA401
• Dimensions (W×D×H): 560 × 650 × 900 mm (all models)
• Weight: CEA401 60 kg / CIA401 60 kg / CMA401 65 kg
• Power supply: AC 220 V / 50 Hz
• Power consumption: 0.5 kW
• Liquid CO2 pressure: 5 MPa (nominal)
• CO2 consumption: 3–6 kg/h (all models)
• Compressed air requirement: 0.5–1 MPa; consumption 50–300 L/min
• CO2 nozzle: CEA401 1–3 pcs / CIA401 none / CMA401 1–2 pcs
• Terminal control box: CEA401 none / CIA401 standard / CMA401 standard
• Lubricant supply: CEA401 optional / CIA401 none / CMA401 optional
