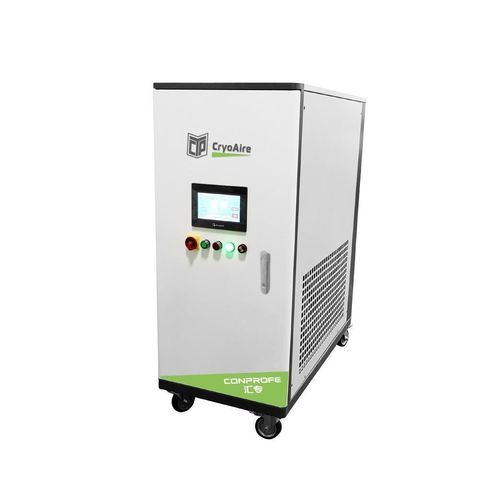

Machining center coolant system CEA 321

Product Overview
Cryogenic Air Blasting System CEA 321 delivers targeted cryogenic air (-10 °C to -60 °C range; operating set point -20 °C) combined with minimal-quantity lubricant (MQL) to reduce cutting temperatures and tool wear during machining. The system injects a controlled cryogenic air stream directly into the cutting zone while dosing a plant-based lubricant to enhance lubrication and suppress heat generation.

Applications

• Designed for machining hard-to-machine materials by turning, milling, drilling and grinding
• Applicable industries: aerospace, energy equipment, electronics (3C), shipbuilding, mold making, automotive, medical
• Typical parts: aero engine components, precision shafts, complex molds, automotive parts, medical device components

Technical Parameters

• Item: CEA 321
• Dimension: 500 x 1,100 x 1,250 mm
• Weight: 100 kg
• Power Supply: AC 380 V
• Power: 2.2 kW
• Air Pressure: 0.5–0.8 MPa
• Air Consumption: 50–1,000 L/min
• Cooling Temperature: -20 °C (setpoint)
• Outlet Temperature Control: PLC‑programmed
• Oil Consumption: 0–50 ml/h
• MQL Lubricant: Cryogenic‑grade Cryolube F10

Key Features

• Direct cryogenic air delivery to cutting zone for effective temperature control
• Integrated MQL dosing for improved lubrication with minimal oil use
• PLC control for outlet temperature and process repeatability
• Compact footprint suitable for installation on CNC turning and milling centers
