Synchronous motor C1220FDCsmallmicro
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, DC
- Configuration
- small, micro
- Applications
- for the electronics industry
- Power
0.94 W
(0 hp)- Intensity
45 mA, 50 mA, 70 mA
- Torque
0.0017 Nm, 0.0026 Nm, 0.0036 Nm
(0.001254 ft.lb, 0.001918 ft.lb, 0.002655 ft.lb)- Rotational speed
Max.: 18,500 rpm
(116,238.9282 rad.min-1)Min.: 9,500 rpm
(59,690.2604 rad.min-1)- Diameter
12 mm
(0.47 in)- Operating temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)
Description

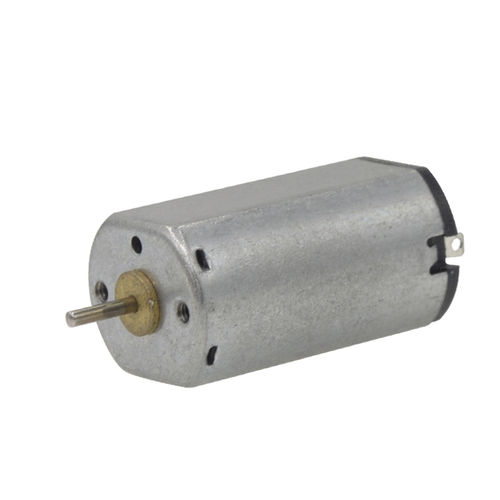

C1220F
1220 Micro DC Core Motor
Diameter：12mm Length ：20mm Voltage：4.5V 、5V、6V Max. Output Power ：0.94W Speed：9500-18500rpm
Applications
Security equipment, small electronic products, remote control model aircraft, personal care products, portable electric tools, etc.
Options
Lead wires length、Shaft length、Special coils、Gearheads
Unit Price
Price upon request
