Synchronous motor C1718R
DCiron-corefor the electronics industry

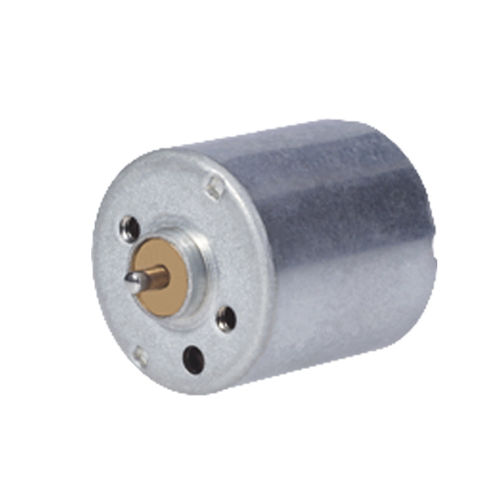

Synchronous motor - C1718R - Constar Motion Co., LTD - DC / iron-core / for the electronics industry
Synchronous motor - C1718R - Constar Motion Co., LTD - DC / iron-core / for the electronics industry
Add to favorites
Compare this product
Go to the Constar Motion Co., LTD website for more information

Characteristics

Type
synchronous, DC
Configuration
iron-core
Applications
for the electronics industry
Power

1.6 W
(0 hp)

Intensity

70 mA, 80 mA

Torque

0.0033 Nm, 0.0056 Nm, 0.0065 Nm
(0.002434 ft.lb, 0.00413 ft.lb, 0.004794 ft.lb)

Rotational speed

Max.: 25,200 rpm
(158,336.2697 rad.min-1)

Min.: 16,000 rpm
(100,530.9649 rad.min-1)

Diameter

17 mm
(0.67 in)

Operating temperature

Max.: 80 °C
(176 °F)

Min.: -20 °C
(-4 °F)

Description

C1718R 17mm DC Core Motor Diameter：17mm Length ：18mm Voltage：6V 、7.4V、11V Max. Output Power ：1.6W Speed：16000-25200rpm Applications Security equipment, small electronic products, remote control model aircraft, personal care products, portable electric tools, etc. Options Lead wires length、Shaft length、Special coils、Gearheads Unit Price Price upon request
