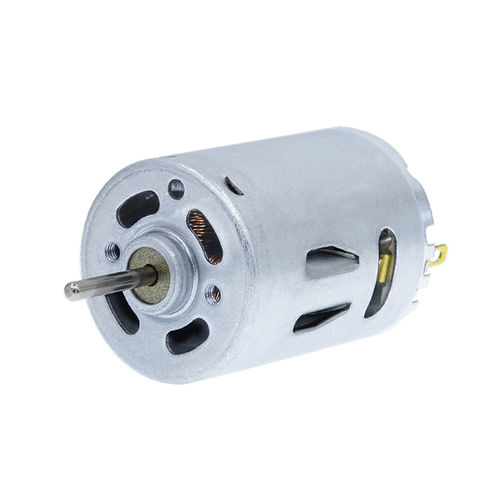

Synchronous motor C2838RDC24 Viron-core
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, DC
- Voltage
- 24 V
- Configuration
- iron-core
- Applications
- for pump, for the automotive industry
- Power
22 W
(0.03 hp)- Intensity
70 mA, 250 mA, 450 mA
- Torque
0.0083 Nm, 0.0088 Nm
(0.006122 ft.lb, 0.006491 ft.lb)- Rotational speed
Min.: 8,800 rpm
(55,292.0307 rad.min-1)Max.: 15,000 rpm
(94,247.7796 rad.min-1)- Diameter
28 mm
(1.1 in)- Operating temperature
Min.: 0 °C
(32 °F)Max.: 60 °C
(140 °F)
Description
C2838R
28mm 380 DC Core Motor
Diameter：28mm Length ：38mm Voltage：7.2V、9V、24V Max. Output Power ：22W Speed：8800-15000rpm
Applications
Automotive products, breast pumps, electric tools, etc.
Options
Lead wires length、Shaft length、Special coils、Gearheads
Unit Price
Price upon request
