Micro servomotor 08**M5...M...
brushedDC3 V

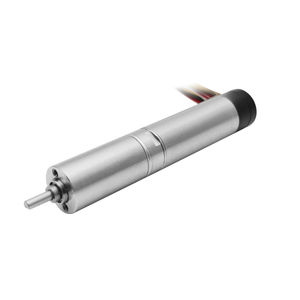

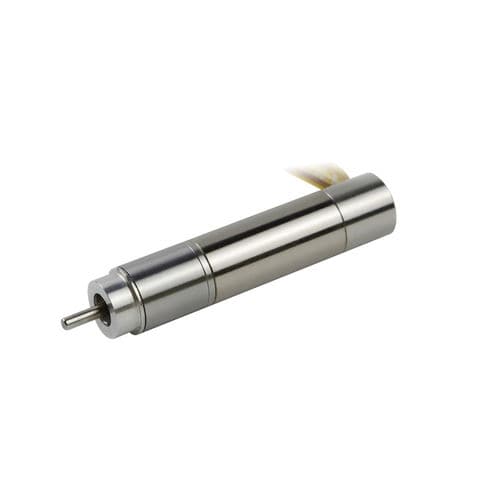

Micro servomotor - 08**M5...M... - Constar Motion Co., LTD - brushed / DC / 3 V
Micro servomotor - 08**M5...M... - Constar Motion Co., LTD - brushed / DC / 3 V
Micro servomotor - 08**M5...M... - Constar Motion Co., LTD - brushed / DC / 3 V - image - 2
Add to favorites
Compare this product
Go to the Constar Motion Co., LTD website for more information

Characteristics

Type
brushed, DC
Voltage
3 V
Configuration
coreless, with coder, micro
Protection class
IP40
Applications
for robotics, for medical equipment
Other characteristics
custom, low-noise, low-voltage
Power

Min.: 0 W
(0 hp)

Max.: 10 W
(0.01 hp)

Intensity

88 mA

Torque

Min.: 0.0001 Nm
(0.000074 ft.lb)

Max.: 0.036 Nm
(0.026552 ft.lb)

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

5,490 rpm
(34,494.6873 rad.min-1)

Max.: 9,000 rpm
(56,548.6678 rad.min-1)

Diameter

8 mm
(0.31 in)

Operating temperature

85 °C
(185 °F)

Description

08**M5...M... 8mm Micro DC Servo Motor Diameter：8mm Length ： 31-51mm Voltage：3V Gearbox：Metal CNC、Metal injection Applications Medical equipment, intelligent prostheses, industrial robots, etc. Options Lead wires length、Special coils、Shaft length Unit Price Price upon request
