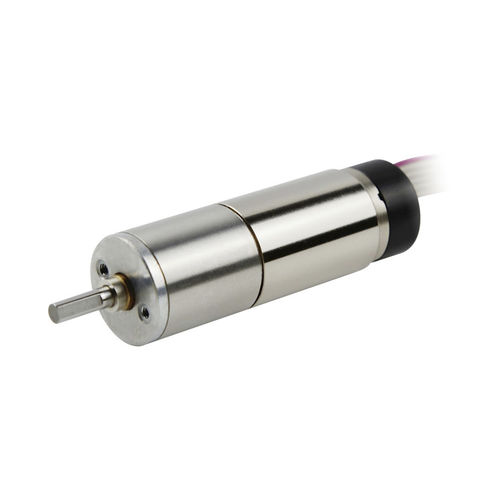

12 V servomotor 16**C5...M...
brushedDCcoreless

12 V servomotor - 16**C5...M... - Constar Motion Co., LTD - brushed / DC / coreless
12 V servomotor - 16**C5...M... - Constar Motion Co., LTD - brushed / DC / coreless
12 V servomotor - 16**C5...M... - Constar Motion Co., LTD - brushed / DC / coreless - image - 2
Add to favorites
Compare this product
Go to the Constar Motion Co., LTD website for more information

Characteristics

Type
brushed, DC
Voltage
12 V
Configuration
coreless, with coder, micro
Applications
for robotics, for medical equipment
Other characteristics
custom, high-precision
Power

Max.: 30 W
(0.04 hp)

Min.: 0 W
(0 hp)

Intensity

920 mA

Torque

Max.: 9 Nm
(6.638059 ft.lb)

Min.: 0.0128 Nm
(0.009441 ft.lb)

Rotational speed

7,800 rpm
(49,008.8454 rad.min-1)

Max.: 15,000 rpm
(94,247.7796 rad.min-1)

Min.: 50 rpm
(314.1593 rad.min-1)

Diameter

16 mm
(0.63 in)

Operating temperature

85 °C
(185 °F)

Description

16**C5...M... 16mm 12V DC Coreless Gearmotor With Encoder Diameter：16mm Length : 41-55 mm Voltage：12V Gearbox：Metal CNC Applications Medical equipment, intelligent prostheses, industrial robots, etc. Options Lead wires length、Special coils、Shaft length Unit Price Price upon request
