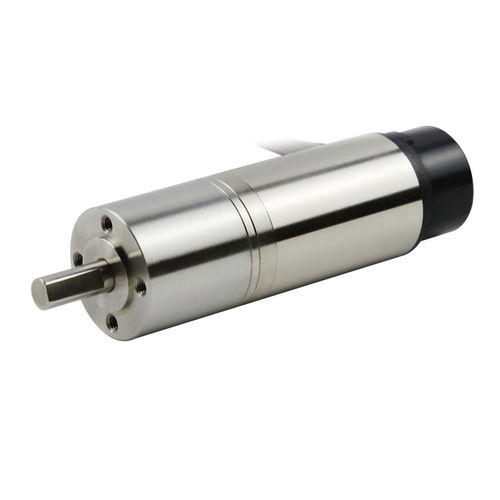

High-torque servomotor 25**C9...M...
brushedDC24 V

High-torque servomotor - 25**C9...M... - Constar Motion Co., LTD - brushed / DC / 24 V
High-torque servomotor - 25**C9...M... - Constar Motion Co., LTD - brushed / DC / 24 V
High-torque servomotor - 25**C9...M... - Constar Motion Co., LTD - brushed / DC / 24 V - image - 2
Add to favorites
Compare this product

Characteristics

Type
brushed, DC
Voltage
24 V
Configuration
coreless, with coder, small
Protection class
IP21
Applications
for robotics, for industrial applications, for medical equipment
Other characteristics
custom, high-torque, high-efficiency, high-power, low-noise, low-speed, servo-driven
Power

Min.: 0 W
(0 hp)

Max.: 30 W
(0.04 hp)

Intensity

1,070 mA

Min.: 15 mA

Max.: 3,690,000 mA

Torque

0.48 Nm
(0.35403 ft.lb)

Min.: 0.135 Nm
(0.099571 ft.lb)

Max.: 50 Nm
(36.878107 ft.lb)

Rotational speed

4,570 rpm
(28,714.1569 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Max.: 6,500 rpm
(40,840.7045 rad.min-1)

Diameter

25 mm
(0.98 in)

Operating temperature

120 °C
(248 °F)

Description

25**C9...M... 25mm DC 24V Servo Motor Diameter:25mm Length : 61.5-85.5mm Voltage:24V Gearbox:Metal CNC Applications Medical equipment, intelligent prostheses, industrial robots, etc. Options Lead wires length、Special coils、Shaft length Unit Price Price upon request
