1 NO/NC protection relay
ELR-D2-V

Add to MyDirectIndustry favorites
Compare this product

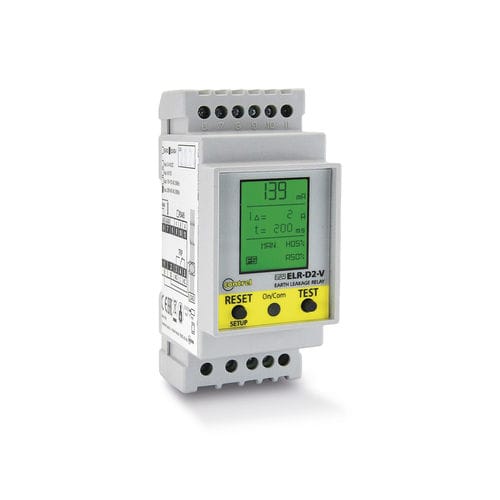

1 NO/NC protection relay 1 NO/NC protection relay - ELR-D2-V
{{requestButtons}}

Characteristics

  • Contact configuration:

    1 NO/NC

  • Trigger voltage:

    110 V, 240 V

Description

Earth leakage relay with 2 operation thresholds, 2 module, external ct, LCD display, RS485 communication interface.



GENERAL CHARACTERISTICS
• True RMS
• Earth leakage relay type A
• External toroidal
• Green power LED indicator (ON)
• Red relay tripped LED indicator (TRIP)
• LCD display
• Front TEST and RESET buttons
• RS485 serial interface (Modbus RTU)
• Modular DIN housing, 2 modules, with transparent cover
• Degree of protection: IP20 terminals, IP40 on front with cover
