Radio control MultiST

with buttons4-buttonlithium

Overview
Multifrequency remote control, light-weight (only 16g), soft-touch cover, that transmits at 433 MHz and 868 MHz.

Short description
The Creasol MultiST is a portable multi-frequency remote control duplicator able to copy several types of remote control for gates, garage doors, traffic barriers and similar devices which transmit in frequencies between 224 MHz and 868 MHz (including 433.92 MHz, 868.3 MHz, 315 MHz, 403.55 MHz, 418 MHz and other frequencies in the 224–390 MHz range). Note: the frequency range 224–418 MHz is not enabled for the EU market. Duplication is fully automatic (both frequency and code are learned automatically) and does not require external equipment. Each button is independent and it is possible to clone up to 4 different remote controls, even if they transmit on different frequencies. The product is made in EU, supplied in a transparent resealable recyclable clamshell, with instructions in several languages, a CR2032 3V battery already installed, a mobile strap and a 2-year warranty. Available in multiple colors.

Highlights / Features

• Multi-frequency support: from 224 MHz up to 868 MHz (main supported frequencies: 433.92 MHz and 868.3 MHz).
• Automatic learning: both frequency and code learned automatically without external tools.
• Independent buttons: up to 4 different remote controls can be cloned (each on a different button).
• Light-weight: approx. 16 g.
• Soft-touch cover (ergonomic feel).
• Battery: CR2032 3V (supplied installed).
• Supplied packaged in resealable clamshell with multilingual manual.
• Made in EU; 2 years warranty.
• Available in different colors (coffee, red, yellow, light blue, green, beige (and others)).

Duplication (how to duplicate a remote)

• Press together buttons 1 and 2 until the LED becomes green.
• Release all buttons.
• Press the button where you wish to copy the original remote control: the duplicator starts scanning the supported frequencies.
• Start to transmit by pressing and holding the button on the original remote control from a short distance (a few centimetres).

When duplication ends, the LED flashes: 2 times for fixed code, 4 times for rolling code. Then the LED becomes green and the duplication procedure restarts from step 3. If the LED flashes 4 times (rolling code), the duplicated code may not work. At step #3 it is possible to push the target button N times to set the desired frequency directly instead of letting the duplicator scan (e.g. push 2 for 433.92 MHz, 3 for 868.3 MHz). After duplication test that the code was copied correctly by transmitting multiple times and verifying that the controlled device reacts reliably.

Initialization of a random 32-bit code

• Press together buttons 3 and 4 until the LED becomes green (about 5 seconds).
• Release all buttons.
• Press 2 or more times the button where you wish to initialize the code (2 = 433.92 MHz, 3 = 868.3 MHz).

The remote emits 2 flashes; it is then possible to initialize a new random code on another button repeating the procedure. Uses: remove a previously stored code or program a random code to be used with a universal receiver.

Battery status and replacement
If during transmission or duplication both LEDs blink (red and green), the battery voltage is low due to either very low temperature or a flat battery. To replace the battery, open the shell (insert a screwdriver in the bottom-left corner) and replace the CR2032 lithium cell inside.

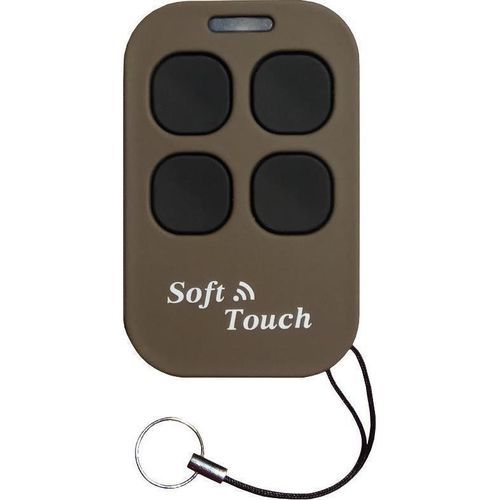

Product look and packaging
The remote is provided with a factory-programmed unique code, battery already installed, a mobile strap and 2 years warranty. Everything is packed in a transparent resealable clamshell with a multi-language manual. Available in different colors and finishes. A soft-touch cover provides a pleasant tactile feel.

Compatibility
The product includes extensive compatibility support across many brands, frequencies and models. Representative examples from the compatibility table (brand — frequency — models):
CAME — 433.920 / 315.000 / 868.350 — many TOP/TAM/TWIN/T series models supported (note: some CAME models can be programmed as fixed or rolling code; duplication works only if set to fixed code).
FAAC — 300.000 / 315.000 / 330.000 / 433.920 / 418.000 / 868.350 — many TM and TML series supported (some receivers require rolling-code checks disabled on receiver to accept cloned fixed codes).
HORMANN — 433.920 / 868.300 — many HSM/HS/HSZ models supported but note that rolling-code variants (and BiSecur models) cannot be duplicated.
BFT, BENINCA, DEA, MARANTEC, NICE, TELCOMA, SEAV, V2, VISIONIC and many other brands and series are supported (see full compatibility table for detailed per-model entries and supported frequencies).

Incompatibilities / Known limits
The device cannot duplicate remotes that transmit below 220 MHz (e.g. 27, 30, 40 MHz). Many rolling-code transmitters (various models/brands) are not duplicable. Some remote-control families are explicitly listed as incompatible when they implement non-copyable rolling-code schemes or proprietary secure protocols. Also some models transmit on FM/FSK or proprietary modulation which prevents duplication. Refer to the compatibility and incompatible lists for details on specific brands and model families.

Other resources
Instructions/manuals are available for MultiST in multiple languages (PDF manual provided by the manufacturer). A video demonstrating MultiST programming and duplication procedure is available from the product resources.

Note
The device is intended to learn and clone fixed code transmitters automatically. Some rolling-code transmitters may be partially supported only if the target receiver can be programmed/configured to accept a fixed code (in such cases duplication may not work or additional configuration of the receiver is required).

Characteristics / Technical specifications

• Brand: Creasol
• Model: MultiST
• Supported frequency range: 224 MHz – 868 MHz (main supported bands: 433.92 MHz and 868.3 MHz). Range 224–418 MHz not enabled for EU market.
• Supported specific frequencies (examples): 433.92 MHz, 868.3 MHz, 315 MHz, 403.55 MHz, 418 MHz.
• Weight: approx. 16 g
• Power supply: 1 × CR2032 lithium cell (3 V), battery pre-installed
• Buttons: 4 independent push-buttons (each can store a different remote)
• Learning: automatic frequency and code learning (fixed-code and some rolling-code behaviours detected; rolling-code duplication may fail)
• Packaging: transparent resealable clamshell with multi-language manual, mobile strap included
• Warranty: 2 years
• Manufacturing origin: Made in EU
• Case: soft-touch cover
• Available colours: coffee, red, yellow, light blue, green, beige (and others)
