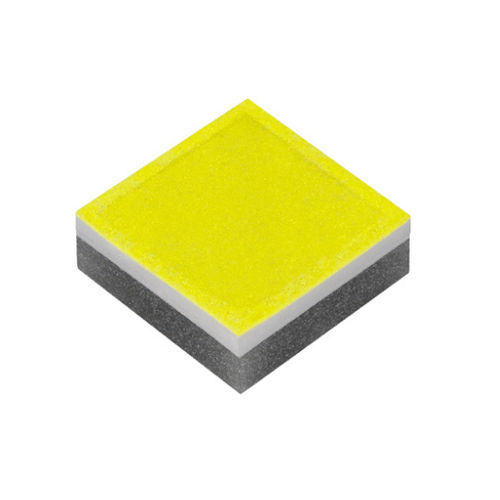

White LED XD16

tunablecyansquare

XLamp XD & XQ 1.6 mm footprint LEDs span a wide range of design options, from the high reliability ceramic mid-power XQ-A family up to the extreme lumen density XD16 family. XLamp XQ family LEDs are optimized for outdoor architectural lighting and emergency vehicle lighting applications where precise optical control must be achieved in the smallest possible physical space. XLamp XD16 LEDs are optimized for maximum lumen density and easily outperform chip-scale-package (CSP) LEDs in LED array applications. •1.6 x 1.6 mm footprint •Single LED die per package for best optical control •Proven reliability in harsh environment outdoor and transportation lighting applications Latest Innovations •XD16 Premium White Color-Tunable LED Arrays Reference Design •Provides guidance on how to create closely-packed LED arrays with XD16 Standard and XD16 Premium White LEDs •XLamp XQ-E HD & HI LEDs: higher max current of 1.500A •XLamp XQ-E HD & HI LEDs: new colors (Cyan, PC Cyan and PC Lime) and white options (2200K & 1800K CCTs)
