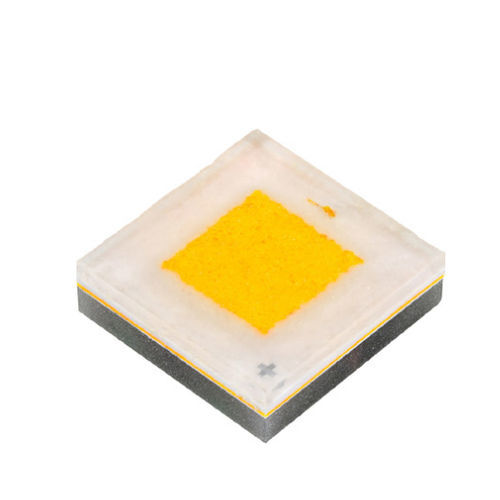

White LED XP-L

squareSMDLED

XLamp® XP-L Color LEDs are multi-color RGBW LEDs that deliver the combination of high lumen output and great color mixing in a small 3.45 x 3.45 mm package. The XLamp XP-L Color LEDs feature the smallest possible distance between LED die, creating a small optical source for excellent optical control and efficient color mixing. The High Intensity version of this LED now has the RGB die available in two different configurations: Blend and Saturation. Blend places the green and phosphor-converted die diagonally to balance light output through secondary optics. Saturation places the blue and phosphor-converted die diagonally to reduce crosstalk and increase blue saturation. XLamp XP-L Color LEDs are optimized for all high-performance RGBW lighting applications, including color-changing, stage, architectural and entertainment. The XP-L Color LED offers high‑density and high‑intensity options. In this document, the term XP-L Color denotes the XP-L Color LED without regard to high density or high intensity. The terms High Density and High Intensity are used when necessary to differentiate the performance of the two options. FEATURES • Maximum drive current per LED die: 1 A • Individually addressable LEDs • Reflow solderable – JEDEC J-STD-020 • Electrically neutral thermal path • RoHS and REACH compliant • UL® recognized component (E349212)
