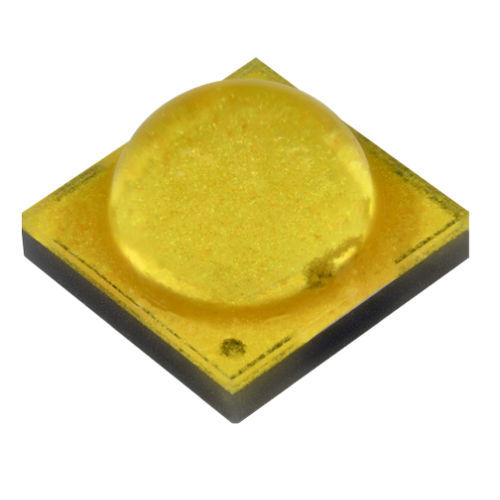

White LED XP-G3

redgreencolored

XLamp® XP-G3 Horizon LEDs have horticulture-specific beam shapes that spread the light output of the LED more evenly over a bed of plants. Standard LED beam shapes send light directly out of the LED and can cause uneven lighting with short luminaire mounting heights. The two different shapes, Horizon70 and Horizon90, send their peak output 70 or 90 degrees total away from center to create more even distributions of light. The XP-G3 Horizon LED is available in Horizon90 and Horizon70 options. In this document, the term XP-G3 Horizon denotes the XP-G3 Horizon LED without regard to its viewing angle or color. The terms Horizon90 and Horizon70 are used when necessary to differentiate the performance of the XP-G3 Horizon90 LED from the XP-G3 Horizon70 LED. FEATURES • ANSI-compatible chromaticity bins • White binned at 85 °C, Photophyll Select, Royal Blue & Photo Red binned at 25 °C • Maximum drive current: White, Photophyll Select, Royal Blue: 2000 mA, Photo Red: 1500 mA • Low thermal resistance: White: 3 °C/W, Photophyll Select, Royal Blue: 2 °C/W, Photo Red: 1.2 °C/W • Wide viewing angle: 125°–148° • Unlimited floor life at ≤ 30 ºC/85% RH • Reflow solderable - JEDEC J‑STD‑020C • Electrically neutral thermal path
