Multi-color LED XN-P

SMDlighting

Product Overview
Flexible extreme high power multi-color LED platform

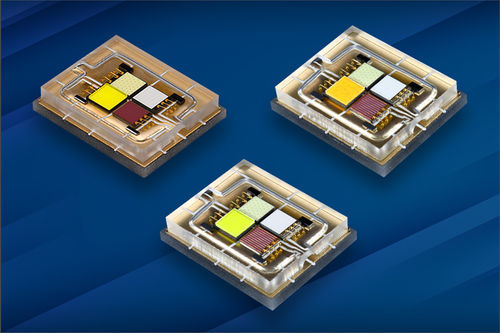

The XLamp XN-P Color LED is a 40W maximum multi-color LED platform, featuring excellent compatibility with existing 5.75 x 4.68 mm LED‑based designs. Featuring more color combinations than competing LEDs of this type, XN-P Color LEDs enable many different luminaire optimizations, such as total lumen output, CCT tuning range and color rendering.

XN-P Color LEDs are optimized for color-changing lighting applications where maximum intensity and impact are required, such as entertainment moving head, architectural spot and machine vision.

Available Color Combinations

• RGBL
• RGBA
• RGBW

Specifications Table
Product Type | Product | Data Sheet | Product Status | Color | Binning Current per die (A) | Binning Temp (°C) | Max Current per die (A) | Max Power (W) | Footprint X (mm) | Footprint Y (mm)
SMD Ceramic | XN-P Color | [Data Sheet] | New | RGBW | 1.000 | 25 | 3.000 | 40 | 5.75 | 4.68
SMD Ceramic | XN-P Color | [Data Sheet] | New | RGBL | 1.000 | 25 | 3.000 | 40 | 5.75 | 4.68
SMD Ceramic | XN-P Color | [Data Sheet] | New | RGBA | 1.000 | 25 | 3.000 | 40 | 5.75 | 4.68

Key Features

• 40W maximum multi-color LED platform
• Excellent compatibility with 5.75 x 4.68 mm LED-based designs
• More color combinations than competing LEDs of this type
• Enables luminaire optimizations: total lumen output, CCT tuning range, color rendering
• Optimized for color-changing lighting applications: entertainment moving head, architectural spot, machine vision

Technical Specifications

• Product Type: SMD Ceramic
• Model: XN-P Color
• Available Colors: RGBW, RGBL, RGBA
• Binning Current per die: 1.000 A
• Binning Temperature: 25°C
• Max Current per die: 3.000 A
• Max Power: 40 W
• Footprint: 5.75 mm x 4.68 mm
