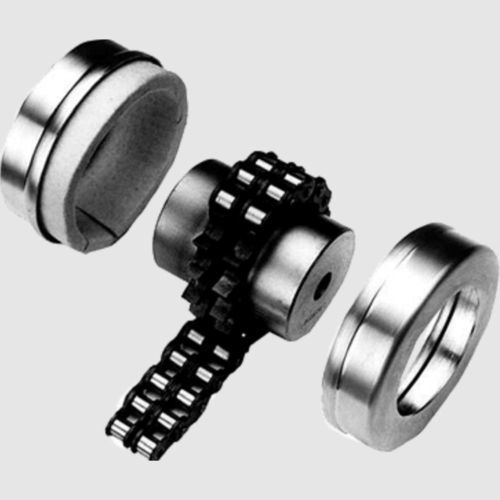

Flexible coupling LNC series
for pumpsmisalignment correction

flexible coupling
flexible coupling
Add to favorites
Compare this product


Characteristics

Type
flexible
Product applications
for pumps
Other characteristics
misalignment correction
Torque

Min.: 23.9 Nm (17.6277 ft.lb)

Max.: 498 Nm (367.306 ft.lb)

Rotational speed

Min.: 100 rpm (628.32 rad.min-1)

Max.: 5,000 rpm (31,415.93 rad.min-1)

Description

The LNC series is manufactured by Cross Morse, and is a Derlin coupling which has a medium to high speed ranging from 100 to 5,000 rpm. It is resistant to corrosion which can operate at a temperature of -30°C to +66°C. It also has an angular misalignment of 1° or 1/2°, which has a parallel misalignment of 0.12 mm to 0.20 mm.

Catalogs

No catalogs are available for this product.

See all of Cross & Morse‘s catalogs
