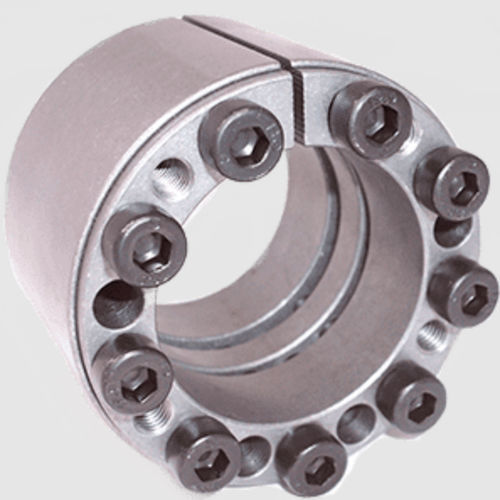

Rigid coupling RCK series
for shaftstransmissionflange

rigid coupling
rigid coupling
rigid coupling
rigid coupling
Add to favorites
Compare this product


Characteristics

Type
rigid
Product applications
transmission, for shafts, flange
Other characteristics
compact, large, friction
Installation system
flange
Torque

Max.: 2,270,000 Nm
(1,674,266.0789 ft.lb)

Min.: 250 Nm
(184.3905 ft.lb)

Description

These are the original type of shaft clamping elements, proven in a wide range of applications for more than 20 years. Suited to more general applications, this series provides medium torque transmission, which can be increased by mounting the unit in series. This type does not provide self centring, and therefore other methods of centring the hub to the shaft are required. The units do not move axially during clamping and generally self-release when clamping screws are relaxed. These shaft clamping elements are very compact units capable of transmitting medium torques. Their design ensures good concentricity between hubs and shafts, without any other means of location. A slight axial movement between hub and shaft occurs during clamping. These units can be installed totally within the hub providing optimum safety, and minimal axial length. These clamping elements are basically to same design as RCK 13, but with increased diameter flange to locate hub and prevent axial movements, so combining good concentricity with positive axial location. The increase in friction between the cones due to axial restriction results in torque reduction of approx 20%, but this also means reduced surface pressures to both hub and shaft.
