Electric stacker truck ETi 4000 series
with rider platformdouble-palletfor warehouse

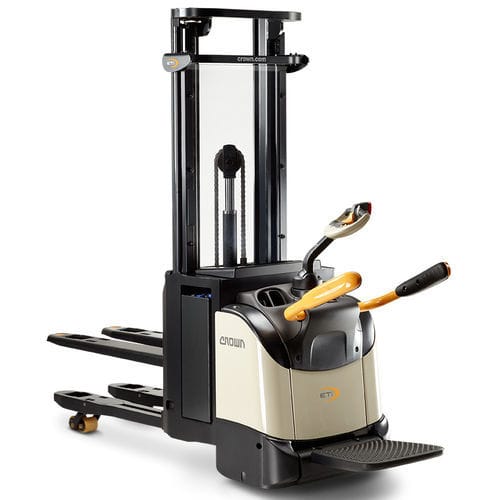

Electric stacker truck - ETi 4000 series - CROWN - with rider platform / double-pallet / for warehouse
Electric stacker truck - ETi 4000 series - CROWN - with rider platform / double-pallet / for warehouse
Electric stacker truck - ETi 4000 series - CROWN - with rider platform / double-pallet / for warehouse - image - 2
Electric stacker truck - ETi 4000 series - CROWN - with rider platform / double-pallet / for warehouse - image - 3
Electric stacker truck - ETi 4000 series - CROWN - with rider platform / double-pallet / for warehouse - image - 4
Electric stacker truck - ETi 4000 series - CROWN - with rider platform / double-pallet / for warehouse - image - 5
Electric stacker truck - ETi 4000 series - CROWN - with rider platform / double-pallet / for warehouse - image - 6
Electric stacker truck - ETi 4000 series - CROWN - with rider platform / double-pallet / for warehouse - image - 7
Electric stacker truck - ETi 4000 series - CROWN - with rider platform / double-pallet / for warehouse - image - 8
Electric stacker truck - ETi 4000 series - CROWN - with rider platform / double-pallet / for warehouse - image - 9
Electric stacker truck - ETi 4000 series - CROWN - with rider platform / double-pallet / for warehouse - image - 10
Electric stacker truck - ETi 4000 series - CROWN - with rider platform / double-pallet / for warehouse - image - 11
Electric stacker truck - ETi 4000 series - CROWN - with rider platform / double-pallet / for warehouse - image - 12
Add to favorites
Compare this product

Characteristics

Energy
electric
Operator
with rider platform
Applications
handling, for warehouse, transport, for pallet, double-pallet
Other characteristics
rugged
Carrying capacity

Max.: 1,600 kg
(3,527.4 lb)

Min.: 1,200 kg
(2,645.5 lb)

Lifting height

Max.: 5,400 mm
(212.6 in)

Min.: 2,440 mm
(96.06 in)

Free lift

Max.: 1,870 mm
(73.6 in)

Min.: 180 mm
(7.1 in)

Height of mast when raised

Max.: 5,880 mm
(231.5 in)

Min.: 2,920 mm
(114.96 in)

Overall width

800 mm
(31.5 in)

Overall length

Max.: 2,637 mm
(103.8 in)

Min.: 2,127 mm
(83.7 in)

Fork width

186 mm, 190 mm
(7.3 in, 7.5 in)

Fork length

1,200 mm
(47.24 in)

Fork thickness

60 mm
(2.36 in)

Turning circle radius

1,860 mm, 2,319 mm
(73.2 in, 91.3 in)

Battery capacity

Max.: 375 Ah

Min.: 230 Ah

Motor power traction

3 kW
(4.079 hp)

Motor power lifting

3 kW
(4.079 hp)

Travel speed

7.5 km/h, 7.7 km/h, 8 km/h, 9 km/h
(4.66 mph, 4.78 mph, 4.97 mph, 5.59 mph)

Lifting speed

0.12 m/s, 0.14 m/s, 0.16 m/s, 0.24 m/s
(0.394 ft/s, 0.459 ft/s, 0.525 ft/s, 0.787 ft/s)

Weight

Max.: 1,392 kg
(3,068.83 lb)

Min.: 1,044 kg
(2,301.63 lb)

Description

Platform Stackers with Initial Lift The ETi platform stackers with initial lift provide higher ground clearance for better handling on inclines and uneven surfaces. Initial lift allows you to securely transport stacked pallets and double productivity. ET Stackers are Built for Real World Challenges The Crown ET Series is engineered for harsh and less-than-perfect conditions. The platform stackers are built to be rugged, precise and powerful. Put them to the test and you’ll find robust performance, simplified use and excellent control. More than Lifting Boost stacking productivity with features that give operators more control for real-world stacking functions. Crown's ET Series excels at positioning the truck to improve stacking efficiency. This is achieved through proportional lift/lower feature, sturdy mast, rigid chassis, superb visibility, and the centre-mounted tiller. The ETi platform stackers with initial lift add a flexibility advantage by providing higher ground clearance for better handling on inclines and uneven surfaces and to avoid product shifting and unsafe transport conditions. Robust initial lift load arms stand up to the severe pounding caused by uneven floors, dock boards and rough surfaces. They also enable double pallet handling.
