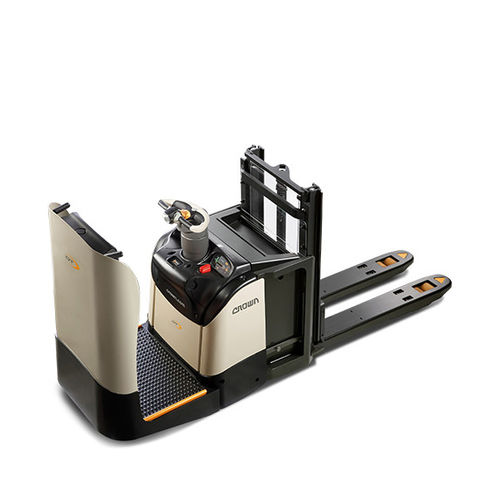

Electric stacker truck DT 3040 series
stand-on24 Vdouble-pallet

Electric stacker truck - DT 3040 series - CROWN - stand-on / 24 V / double-pallet
Electric stacker truck - DT 3040 series - CROWN - stand-on / 24 V / double-pallet
Electric stacker truck - DT 3040 series - CROWN - stand-on / 24 V / double-pallet - image - 2
Electric stacker truck - DT 3040 series - CROWN - stand-on / 24 V / double-pallet - image - 3
Electric stacker truck - DT 3040 series - CROWN - stand-on / 24 V / double-pallet - image - 4
Electric stacker truck - DT 3040 series - CROWN - stand-on / 24 V / double-pallet - image - 5
Electric stacker truck - DT 3040 series - CROWN - stand-on / 24 V / double-pallet - image - 6
Electric stacker truck - DT 3040 series - CROWN - stand-on / 24 V / double-pallet - image - 7
Add to favorites
Compare this product

Characteristics

Energy
electric
Operator
stand-on
Voltage
24 V
Applications
transport, double-pallet, order-picking, traction
Carrying capacity

2,000 kg
(4,409.2 lb)

Lifting height

1,670 mm
(65.75 in)

Free lift

1,355 mm
(53.3 in)

Height of mast when raised

Max.: 3,025 mm
(119.09 in)

Min.: 2,100 mm
(82.68 in)

Overall width

744 mm
(29.3 in)

Overall length

Max.: 2,703 mm
(106.4 in)

Min.: 1,968 mm
(77.5 in)

Fork width

186 mm
(7.3 in)

Fork length

Max.: 1,200 mm
(47.24 in)

Min.: 1,150 mm
(45.28 in)

Fork thickness

60 mm
(2.36 in)

Turning circle radius

Max.: 2,427 mm
(95.6 in)

Min.: 1,720 mm
(67.7 in)

Battery capacity

Max.: 375 Ah

Min.: 148 Ah

Motor power traction

3 kW, 4 kW
(4.079 hp, 5.438 hp)

Motor power lifting

2.2 kW
(2.991 hp)

Travel speed

Max.: 12.5 km/h
(7.77 mph)

Min.: 6 km/h
(3.73 mph)

Lifting speed

0.18 m/s, 0.3 m/s
(0.591 ft/s, 0.984 ft/s)

Weight

Max.: 1,093 kg
(2,409.65 lb)

Min.: 810 kg
(1,785.74 lb)

Description

Double Stacker with Fixed Platform with Side Entry The DT double stacker with side-entry fixed platform features an operator backrest that adds protection and comfort, especially useful for transport and order picking. Pick up the Pace with Crown Double Stackers Crown offers a range of model variations to meet your double-stacking requirements – from medium-duty retail environments to high-density stock-to-dock applications. Crown's double stacker series combine the abilities of a heavy-duty stacker with the flexibility of a pallet truck, plus the capacity to transport two 1000 kg pallets. Flexibility Pays In terms of productivity, control, durability and versatility, Crown's DS and DT Series far exceed typical expectations for double stacker pallet trucks. With double-deck lorries, the advantages stack up even further. You can save shipping costs, valuable dock and floor space while increasing throughput. The double stacker series are available in five configurations offering travel speeds of up to 12.5 km/h. Two models without platform are available for dedicated pedestrian use in medium- to heavy-duty applications. The folding-platform configuration with adjustable side restraints offers the flexibility of switching between rider and pedestrian mode. The fixed-platform configuration with rear entry and comfortable operator compartment is ideal for high traffic areas or long runs. The fixed-platform configuration with side entry and backrest is especially useful for transport and order picking.
