Electric stacker truck SHC 5500 series
walk-behind24 Vfor warehouse

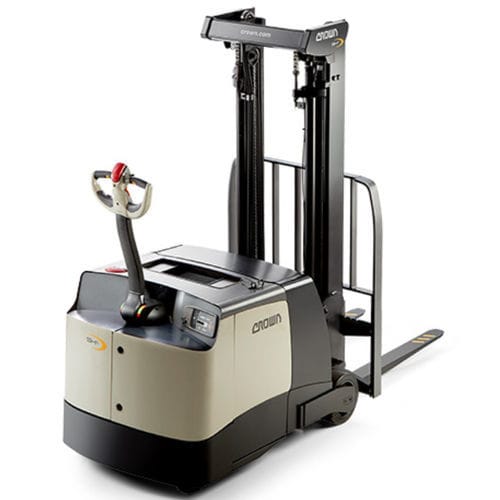

Electric stacker truck - SHC 5500 series  - CROWN - walk-behind / 24 V / for warehouse
Electric stacker truck - SHC 5500 series  - CROWN - walk-behind / 24 V / for warehouse
Electric stacker truck - SHC 5500 series  - CROWN - walk-behind / 24 V / for warehouse - image - 2
Electric stacker truck - SHC 5500 series  - CROWN - walk-behind / 24 V / for warehouse - image - 3
Add to favorites
Compare this product

Characteristics

Energy
electric
Operator
walk-behind
Voltage
24 V
Applications
handling, for warehouse, transport, for lifting, loading, storage, unloading
Other characteristics
compact, counterbalanced
Carrying capacity

Max.: 1,800 kg
(3,968.3 lb)

Min.: 1,100 kg
(2,425.1 lb)

Lifting height

4,365 mm
(171.85 in)

Free lift

Max.: 1,875 mm
(73.8 in)

Min.: 150 mm
(5.9 in)

Height of mast when raised

Max.: 5,590 mm
(220.08 in)

Min.: 3,480 mm
(137.01 in)

Overall width

Max.: 990 mm
(39 in)

Min.: 940 mm
(37 in)

Overall length

Max.: 2,885 mm
(113.6 in)

Min.: 2,450 mm
(96.5 in)

Fork width

100 mm
(3.9 in)

Fork length

915 mm
(36.02 in)

Fork thickness

38 mm, 45 mm
(1.5 in, 1.77 in)

Turning circle radius

1,320 mm, 1,480 mm, 1,670 mm
(52 in, 58.3 in, 65.7 in)

Battery capacity

625 Ah

Motor power traction

2 kW
(2.719 hp)

Motor power lifting

3.3 kW
(4.487 hp)

Travel speed

4.8 km/h
(2.98 mph)

Lifting speed

0.16 m/s, 0.31 m/s
(0.525 ft/s, 1.017 ft/s)

Weight

Max.: 3,085 kg
(6,801.26 lb)

Min.: 2,120 kg
(4,673.8 lb)

Description

The SHC Series combines the features of a counterbalance forklift with a heavy-duty stacker to create a truck well suited for dock work, transport, putaway and block stacking. Heavy-Duty Stackers Navigate with Ease The Crown SH, SHR and SHC Series combine the operational benefits of pedestrian stackers with the power and flexibility to handle non-standard loads. The small footprint and extended load capacities enable operators to quickly and easily manoeuvre and position heavy loads in tight, congested areas. Multipurpose, Flexible, Space Saving Crown’s heavy-duty stackers offer exceptional flexibility to meet the challenges of a variety of applications – ranging from loading/unloading lorries to dock work, rack or bulk storage, block stacking and short transport. They are a cost-effective alternative to sit-down counterbalance trucks, and help save space and improve efficiency. The heavy-duty stackers are easy to use and require no specific licence, providing greater flexiblility in staff assignments. The SHC Series counterbalance stacker is designed to perform the tasks of multiple forklifts. It provides stability without the need for outriggers and combines the advantages of a stacker and a traditional sit-down forklift. Optimised for Tight Spaces Operators of Crown heavy-duty stackers find them easy to use – even in tight spaces – since the innovative controls and compact design enhance manoeuvrability. The Brake Override Function included with the SH, SHR and SHC Series facilitates operation in extremely confined spaces with the handle in a nearly vertical position.
