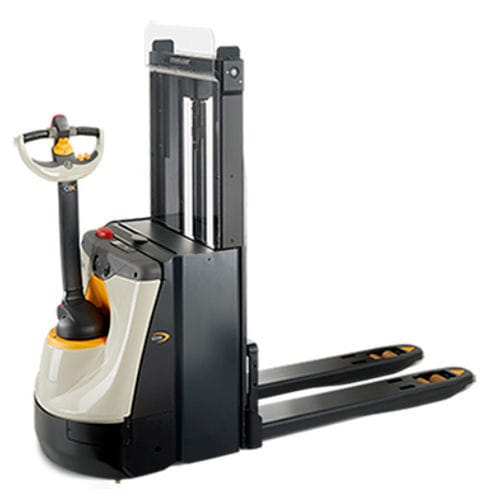

Electric stacker truck DS 3200 series
walk-behind24 Vdouble-pallet

Electric stacker truck - DS 3200 series - CROWN - walk-behind / 24 V / double-pallet
Electric stacker truck - DS 3200 series - CROWN - walk-behind / 24 V / double-pallet
Electric stacker truck - DS 3200 series - CROWN - walk-behind / 24 V / double-pallet - image - 2
Electric stacker truck - DS 3200 series - CROWN - walk-behind / 24 V / double-pallet - image - 3
Electric stacker truck - DS 3200 series - CROWN - walk-behind / 24 V / double-pallet - image - 4
Electric stacker truck - DS 3200 series - CROWN - walk-behind / 24 V / double-pallet - image - 5
Electric stacker truck - DS 3200 series - CROWN - walk-behind / 24 V / double-pallet - image - 6
Electric stacker truck - DS 3200 series - CROWN - walk-behind / 24 V / double-pallet - image - 7
Add to favorites
Compare this product

Characteristics

Energy
electric
Operator
walk-behind
Voltage
24 V
Applications
for warehouse, loading, unloading, double-pallet, traction
Other characteristics
compact, rugged
Carrying capacity

2,000 kg
(4,409.2 lb)

Lifting height

Max.: 2,600 mm
(102.36 in)

Min.: 2,100 mm
(82.68 in)

Free lift

240 mm
(9.4 in)

Height of mast when raised

2,497 mm, 2,697 mm
(98.31 in, 106.18 in)

Overall width

Max.: 744 mm
(29.3 in)

Min.: 712 mm
(28 in)

Overall length

1,979 mm, 1,995 mm
(77.9 in, 78.5 in)

Fork width

186 mm
(7.3 in)

Fork length

1,190 mm
(46.85 in)

Fork thickness

60 mm
(2.36 in)

Turning circle radius

1,703 mm, 1,765 mm
(67 in, 69.5 in)

Battery capacity

Max.: 375 Ah

Min.: 74 Ah

Motor power traction

1.5 kW
(2.039 hp)

Motor power lifting

1.3 kW
(1.768 hp)

Travel speed

5.9 km/h, 6 km/h
(3.67 mph, 3.73 mph)

Lifting speed

0.13 m/s, 0.23 m/s
(0.427 ft/s, 0.755 ft/s)

Weight

740 kg
(1,631.42 lb)

Description

Pedestrian Double Stackers The DS and DT pedestrian double stacker models are compact, agile and extremely manoeuvrable, allowing you to easily double up pallet loads in confined spaces. Pick up the Pace with Crown Double Stackers Crown offers a range of model variations to meet your double-stacking requirements – from medium-duty retail environments to high-density stock-to-dock applications. Crown's double stacker series combine the abilities of a heavy-duty stacker with the flexibility of a pallet truck, plus the capacity to transport two 1000 kg pallets. Flexibility Pays In terms of productivity, control, durability and versatility, Crown's DS and DT Series far exceed typical expectations for double stacker pallet trucks. With double-deck lorries, the advantages stack up even further. You can save shipping costs, valuable dock and floor space while increasing throughput. The double stacker series are available in five configurations offering travel speeds of up to 12.5 km/h. Two models without platform are available for dedicated pedestrian use in medium- to heavy-duty applications. The folding-platform configuration with adjustable side restraints offers the flexibility of switching between rider and pedestrian mode. The fixed-platform configuration with rear entry and comfortable operator compartment is ideal for high traffic areas or long runs. The fixed-platform configuration with side entry and backrest is especially useful for transport and order picking.
