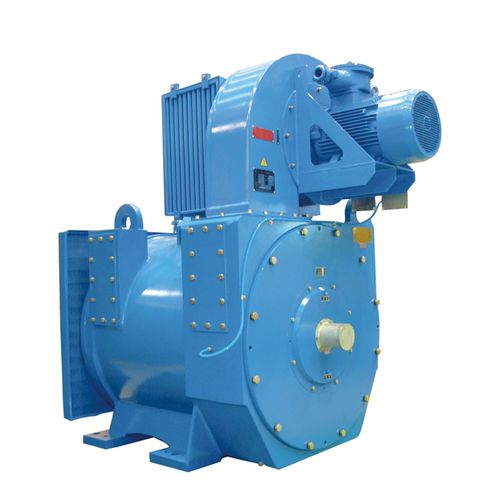

AC motor YSP4232-6asynchronous220 Vexplosion-proof
Add to favorites
Compare this product
Characteristics
- AC/DC
- AC
- Type
- asynchronous
- Voltage
- 220 V
- Protection class
- explosion-proof, IP44, IP55
- Configuration
- squirrel cage, squirrel-cage rotor, stainless steel
- Applications
- for machine tools
- Other characteristics
- with integrated inverter
- Power
700 kW
(951.735 hp)- Torque
10,129 Nm
(7,470.767 ft.lb)- Rotational speed
Max.: 1,318 rpm
(8,281.24 rad.min-1)Min.: 660 rpm
(4,146.9 rad.min-1)
Description
Main features
Integrated explosion-proof type: ：Expzde Ⅱ BT4 (Serial number of certificate: CNEz07.0986X)
Stator applies shaped hard winding.
It is installed with explosion-proof heater（AC220V， 200W， 50Hz）.
High strength copper alloy squirrel-cage rotor
200 level corona-resistance insulation structure
Rotating shaft adopts high strength alloy steel material.
IP55 increased-safety explosion-proof stainless steel material
It is installed with explosion-proof air pressure switch for positive pressure protection and explosion-proof overhaul switch for system overhaul protection.
Each phase winding of stator is embedded with two PT100 stator winding temperature sensors.
Imported SKF/FAG bearing is applied.
Bearing temperature sensor
