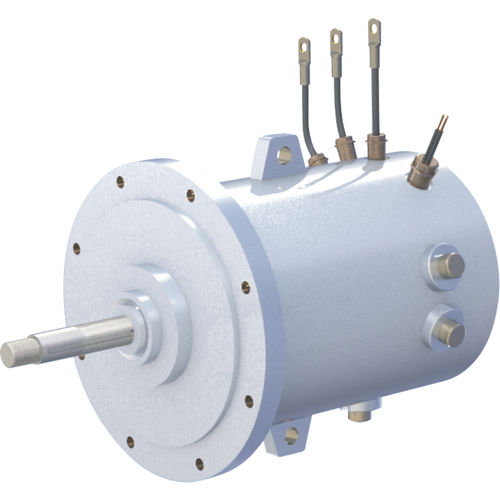

AC motor TYP100M2-2

synchronous380 VIP21

Basic Parameter rated power15kWrated efficiency 95.3% rated rotating speed26000r/minpeak rotating speed26000r/min rated voltage380Vrated current27A rated torque5.5NmdutyS1　 insulation classHIPIP54 noise85dBbearingrolling bearing weight60kgcooling methodcirculating water cooling Basic Parameter for Converter rated power　15kWinput voltage380V rated current　27Aoutput voltage range0～380V IP　IP21output frequency range　0～450Hz cooling method　air cooling featureadvantage high efficiencyBy adopting rare earth permanent magnet material, full load efficiency of the motor is up 3%. By adopting high-speed direct drive and removing step-up gearbox, the system efficiency is up about 5%～7%. By adopting various frequency speed regulating technique the efficiency value is 5%～30% higher compared with three-phase asynchronous motor under partial load operation. Small size and high power densityPermanent magnet motor features high efficiency and low loss and smaller size compared with three-phase asynchronous motor under the same cooling condition. It removes step-up gearbox by adopting high-speed direct drive structure. The power factor of motor will not lower with pole number increasing, making multi-pole easy. High reliabilityWith no step-up gearbox, rotor conducting bar, coil, cast aluminium and end ring of the induction motor, the high-speed permanent magnet motor is operating more stably and reliably. Direct driveThere’ no need for step-up gearbox by adopting high-speed direct drive structure. It’s of simple structure and easy maintenance.
