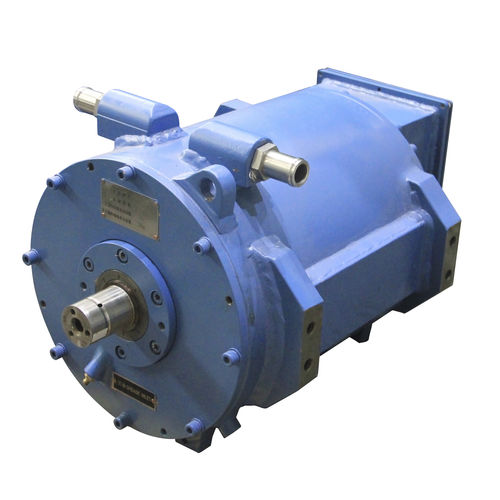

Synchronous motor TZ-245XS-10

AC220 Vpermanent magnet

Basic Parameter rated power25kWPeak power45kW rated torque147N.mPeak torque500N.m rated RPM1600r/minPeak rpm4700r/min rated voltage 215VRated current77A rated efficiency94%IPIP67　 insulation classHCooling method IC3W7　 noise75dBweight135kg Basic parameter for converter rated power　55kWPeak power　82.5kW Rated input current143A(DC)Rated output current210A(AC) Rated input voltage　375VDCOutput voltage range　0～280VAC Output frequency range　0～450HzCooling method 　Water cooling IP　IP67Rated efficiency 　98% featureadvantage high efficiencyThe motor enjoys rated efficiency of 94% and wide constant power range with over 80% efficiency area accounting for 85% of the total efficiency area. High reliabilityBy adopting new rare earth material and reasonable design, it effectively overcomes the irreversible demagnetization of permanent magnet so as to ensure safe and reliable operation under various working conditions. high power densityPermanent magnet synchronous motor is able to provide more power output and acceleration speed for new energy vehicle compared with other motors with the same mass and volume. low maintenance costThe full-enclosure structure creates clean and unpolluted environment within the motor and reduces the maintenance cost in its life-cycle operation process.
