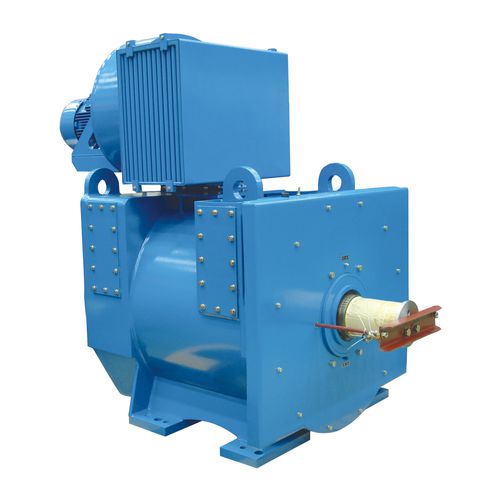

Motor with integrated inverter YSP4235-6ACasynchronousIP55
Add to favorites
Compare this product
Characteristics
- AC/DC
- AC
- Type
- asynchronous
- Protection class
- IP55, IP44, explosion-proof
- Configuration
- squirrel cage, squirrel-cage rotor, stainless steel
- Applications
- for machine tools, oil & gas rigs, for drills
- Other characteristics
- with integrated inverter
- Power
900 kW
(1,223.659 hp)- Intensity
1,080 A
- Torque
7,814 Nm
(5,763.3106 ft.lb)- Rotational speed
Max.: 1,880 rpm
(11,812.39 rad.min-1)Min.: 1,100 rpm
(6,911.5 rad.min-1)
Description
Main Features
Integrated explosion-proof type: Expzde Ⅱ BT4(Serial number of certificate: CNEz07.0986X)
Stator adopts shaped hard winding
It is installed with explosion-proof heater（AC220V， 200W， 50Hz）
High strength copper alloy squirrel-cage rotor
200 level corona-resistance insulation structure
Rotating shaft adopts high strength alloy steel material
IP55 increased-safety explosion-proof stainless steel junction box
It is installed with explosion-proof air pressure switch for positive pressure protection and explosion-proof overhaul switch for system overhaul protection.
Each phase winding of stator is embedded with two PT100 stator winding temperature sensors.
Imported SKF/FAG bearing is applied.
Bearing temperature sensor
