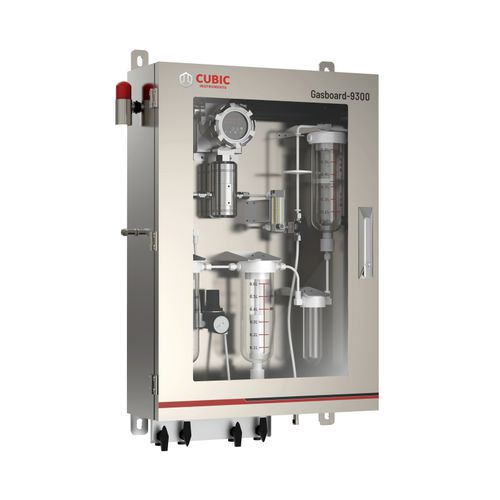

Process gas analyzer Gasboard-9300

oxygenmonitoringprocess

Product Overview
Gasboard-9300 is an online oxygen analyzer designed for continuous oxygen monitoring in reactors, centrifuges, and other oxygen-sensitive process equipment where maintaining a defined oxygen level is critical to safe operation and product quality.

Based on Tunable Diode Laser Absorption Spectroscopy (TDLAS) technology, Gasboard-9300 provides highly selective oxygen measurement with minimal cross-interference from background gases, ensuring fast response and stable long-term performance even under complex gas compositions.

To withstand demanding process environments involving corrosive and volatile solvent vapors, Gasboard-9300 integrates a corrosion-resistant pre-treatment system compatible with acids, alkalis, and organic solvents. The certified explosion-proof enclosure (Ex db IIC T6 Gb) further enables safe installation in Zone 1 and Zone 2 hazardous areas.

Built-in automatic interlock functions, including alarm output and nitrogen purge control, enable timely protective actions when oxygen concentration exceeds preset thresholds, supporting inerting systems and overall process safety management.

Features

• TDLAS technology for high measurement accuracy.
• Fast response time for real-time gas concentration tracking.
• Automatic interlock control with alarm and nitrogen purge replacement.
• Explosion-proof design (Ex db IIC T6 Gb) for high safety in hazardous areas.
• Low maintenance requirements and long service life.
• Resistant to corrosive media: acids, alkalis, and organic solvents.

Specifications

• Measurement principle: TDLAS (Tunable Diode Laser Absorption Spectroscopy)
• Measurement range: 0-5%, 0-25% O2
• Accuracy: ≤±2%F.S*
• Repeatability: ≤±1%F.S*
• Linearity Error: ≤±2%F.S*
• Resolution: 0.1% or 0.01% (range-dependent)
• Response Time T90: 20s
• Explosion Protection: Ex db IICT6 Gb
• Operating Temperature: -20-50℃
• Operating Humidity: 0-98% RH (non-condensing)
• Output: RS-485 (standard)/ RS-232 (optional), Modubus RTU
• Power Supply: 24 VDC/220 VAC

* Specifications may vary depending on configuration and application requirements.
