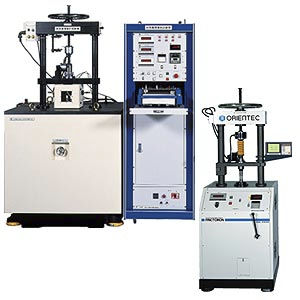

Friction testing machine 2 - 1 000 Ncm | EFM-III series
wear

friction testing machine
friction testing machine
Add to favorites
Compare this product


Characteristics

Test type
friction, wear

Description

The EFM-III series is a friction and wear tester for tribology evaluation in conformity with JIS K 7218. This tester is designed for scientific elucidation and technical evaluation of the characteristics relating to sliding friction, wear and lubrication, that are surface behaviors of relative properties of two interacting material surfaces (relative properties of solid materials in relative motion). To calculate the friction coefficient (µ), the EFM-III series detects a shear force, as a friction force (F), by applying rotational sliding movement to a test piece at a set pressure load (P) and a set sliding velocity (V). In addition, after an evaluation of the PV limit value and a long-time sliding test, the EFM-III series measures the decrease in weight or dimension of the test piece to evaluate its wear resistance. Features of the EFM-III Series - Conforms with JIS K 7218 - Applicable to ring, disc and pin test pieces - Sliding speed ranging from 0.001 cm/sec to 1000 cm/sec - Frictional force measurement ranging from 2 N-cm to 1000 N-cm - System can be customized (additional measurement and control items, etc.) EFM-III Series applications - Evaluation of friction properties relating to materials and products (metal, plastic, ceramics, bearing materials, brake lining materials, clutch disks, self-lubricated materials, lubricant oil, etc.) Measurement of static/kinetic friction Measurement of wear amount Measurement of PV limit value Evaluation of seizure conditions

Catalogs

No catalogs are available for this product.

See all of A&D COMPANY, LIMITED‘s catalogs
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
