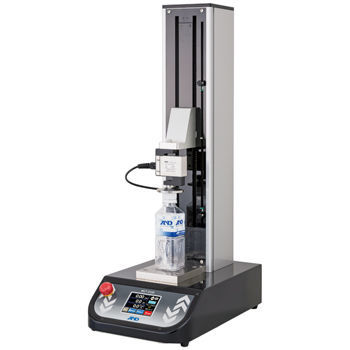

Compression testing machine MCT series

bendingtensilepeel force

Overview
The MCT series of table top universal testing machines are great alternatives to force and push-pull gauges. Strength you can see! Color touch panel - precise and easy to use.

Key features

• Color touch panel for clear visibility and simple operation
• High-precision load cell included; plug in for quick use (auto-zero on startup)
• Easy-to-use digital testing-speed settings
• Includes data capture software for PCs
• Space-saving table top design: 250(W) x 405(D) x 711(H) mm

Software

• MCT-Logger (recording software) — Real-time graphing, calculate and display maximum value and displacement, import/export CSV. Included with MCT-1150.
• MSAT-Lite (data processing software) — Displays operation and processing results, data analysis and graphing, CSV support. Included with MCT-2150/MCT-2150W.

Lineup
The lineup includes the general-purpose MCT-1150, the rigid and durable MCT-2150 with a high-precision ball screw and reinforced crosshead, and the high-performance MCT-2150W, which is also suitable for low-capacity testing applications.

Applications / Example tests

• Measuring strength required to press a button and push sensation
• Packaging heat seal strength test
• Plastic bottle buckling/crushing strength test
• Food packaging film puncture test (JIS Z1707 example: Needle φ1mm Edge R0.5mm)
• Testing push strength for removing medicine from PTP (blister) packaging
• Syringe resistance test (plunger smoothness)
• Tablet compression / crushing strength test
• Flexible cable pull-out test (connector retention)
• Food container metal fastener strength test
• Bending strength test for plastics, metals and writing utensils
• Container film opening/peel force test (compatible with containers up to 120mm diameter and 120mm height)
• Safety cover to prevent samples breaking and scattering during measurement

Product configurations / Typical accessories

• MCT-1150 or MCT-2150 base unit
• Pressure Plate φ15mm JM-X004-500N
• Vice JM-X011-500N
• Parallel screw action jaw JM-JFM-500N ×2
• Pressure Plate φ60mm J-C3-1KN-U
• Puncture Testing Jig JM-CL-100N
• Pressure plate φ5mm JM-X008-500N (or φ15mm JM-X004-500N)
• Pressure plate φ15mm LM-X004-500N and vice JM-X011-500N
• Parallel screw action jaw JM-JFM-500N X2
• Bend testing jig: edge R2mm JM-B-500N (or edge R5mm JM-B1-500N)
• Container peel testing jig

Included items
Instruction manual, 500N capacity load cell, computer software (CD-ROM), USB cable. For MCT-2150W, a 50N capacity load cell is also included.

Caractéristiques / spécifications techniques

• Model: MCT-1150 (General purpose), MCT-2150 (High performance), MCT-2150W (High performance, low capacity)
• Table / floor model: Table model
• Maximum capacity: 500 N
• Crosshead stroke: MCT-1150 = 400 mm; MCT-2150 / 2150W = 370 mm
• Effective stroke*: MCT-1150 = 315 mm; MCT-2150 / 2150W = 285 mm
• Crosshead speed: 10–300 mm/min (within ±5% of set value)
• Crosshead speed setting: Digital, 1 mm/min increments within range
• Crosshead return speed: Three speed settings — 10, 100, 300 mm/min
• Crosshead speed and load capacity: Full speed range at maximum capacity
• Load measurement accuracy (using 500 N load cell): ±0.2% F.S. (general); 50 N–5 N: ±0.2% F.S. / 50 N–5 N: within 2% indicator value / 5 N and lower: within 0.1 N (details vary by model/load cell)
• Load display resolution: With 500 N load cell = 0.1 N; other models: 0.01 N (0.1 N display for values over 100 N) or 0.001 N depending on load cell
• Load calibration: Auto-zero function (calibration unnecessary)
• Displacement display: MCT-1150: 000.0 mm (min 0.1 mm); others: 00.00 mm (min 0.01 mm; 0.1 mm display for values over 100 mm)
• Included software: MSAT-Lite, MCT-Logger
• Safety mechanisms: 1) Upper and lower displacement stroke limits; 2) Overload limit (automatic shutdown when load exceeds 105% of rated capacity); 3) Emergency stop switch
• Dimensions (W × D × H): 250 × 405 × 711 mm
• Weight: MCT-1150 = 17 kg; MCT-2150 / variants ≈ 18 kg
• Power supply: AC 90 to 240 V, single-phase, 50/60 Hz
• Power consumption: 90 W
• Operating ambient conditions: Temperature 5 to 40 °C; Humidity 20 to 80% RH
• Recommended ambient conditions: Temperature 23 ±2 °C; Humidity 50 ±10% RH
