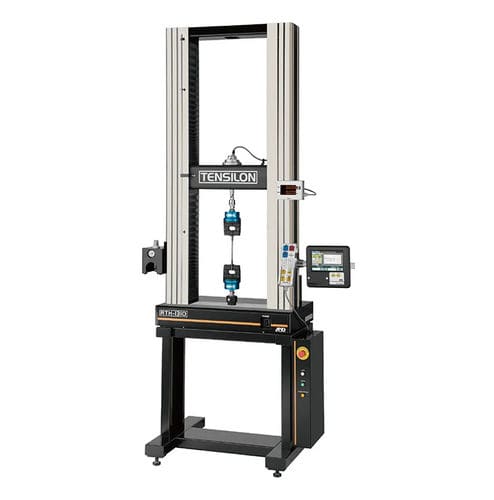

Compression testing machine TENSILON RTI

bendingtensilecomputer-controlled

Overview
The RTI Series TENSILON is a universal material testing machine for tensile, compression and bending tests. It combines a digital servo drive, high-speed sampling and selectable model capacities (up to 10 kN) to support laboratory testing and production quality control.

Key features

• Class 1 accuracy testing machine
• Wide crosshead speed range: 0.001 - 1500 mm/min (model dependent)
• High-speed sampling: 0.2 ms to capture instantaneous load changes
• Low noise operation suitable for test environments
• Color touch panel for clear visibility and straightforward operation

TACT (TENSILON Advanced Controller for Testing)
TACT is the dedicated data processing system for the TENSILON series. It provides very fast sampling (0.2 ms), advanced data analysis, calculation and storage functions, and improves overall operability of the testing machine.

Display & Commander
The system includes a detachable digital display for load and displacement with magnetic attachment and flexible positioning to avoid obstructing sample handling. The display shows 6-digit values for load and displacement. An optional compact handheld commander offers ergonomic manual controls and a jog dial for fine crosshead movement.

User Interface / Screen
Runtime screens are dedicated to test condition display, mode selection and monitoring to support test setup and execution.

Applications
A&D Company supplies a wide range of test fixtures and devices for advanced applications including:

• Strength measurement jaws: screw-action jaws, air jaws, wedge-action jaws
• Compression fixtures: compression cage, compression test jigs, compression-type bending jigs
• Elongation measurement devices: SG series strain-gauge devices for gauge-mark distance measurement
• Temperature/environment devices: constant temperature/humidity chambers, high/low temperature units, high-humidity gas/vacuum options, immersible test devices

Load frame / Dimensions (examples)
RTH-1350: 897(W) x 650(D) x 460(H) mm
RTH-1225/1310 / RTI-1225-1310: 710(W) x 555(D) x 630(H) mm

Specification summary (selected)
Model comparison / key specification overview:
RTI-1310 | RTI-1225
Motor: Digital servo mechanism
Maximum capacity: 10 kN | 2.5 kN
Effective test width: 420 mm
Crosshead speed range: 0.001 - 1200 mm/min | 0.001 - 1500 mm/min
Crosshead speed accuracy: ±0.1%
Crosshead arbitrary speed resolution: 0.0001 mm/min steps within the range
Crosshead position accuracy: ±0.1% of rating (±0.01 mm when rating < 10 mm)
Crosshead return speed: model dependent (examples: 600/1200 mm/min or 825/1650 mm/min)
Load measurement accuracy: ±1% of rating (within 1/1 - 1/500 of load cell rating)
Load calibration: one-touch calibration via built-in load cell circuit
Sampling speed: 0.2 ms
Noise level: typically ≤ 65 dBA (model dependent)
Dimensions (example): 784 × 436 × 1555 mm
Weight (example): 110 kg
Power consumption / Supply / Breaker examples: 475 W / 1.7 kVA / 15 A or 275 W / 700 VA / 15 A
Operating environment: 5 - 40 °C, 20 - 80% RH (no condensation)

Technical specifications

• Brand: A&D Company
• Product: RTI Series TENSILON (universal material testing instrument)
• Motor: Digital servo mechanism
• Maximum capacity: RTI-1310 = 10 kN; RTI-1225 = 2.5 kN
• Effective test width: 420 mm
• Crosshead speed range: 0.001 - 1200 mm/min (some models up to 1500 mm/min)
• Crosshead speed accuracy: ±0.1%
• Crosshead arbitrary speed resolution: 0.0001 mm/min step
• Crosshead position accuracy: ±0.1% of rating (±0.01 mm when rating < 10 mm)
• Crosshead return speed: model dependent
• Load measurement accuracy: ±1% of rating (within 1/1 - 1/500 of load cell rating)
• Load calibration: built-in one-touch calibration
• Sampling speed: 0.2 ms
• Noise level: typically ≤ 65 dBA (model dependent)
• Display: detachable 6-digit load/displacement display, magnet-attachable
• Commander: compact handheld controller with jog dial for manual crosshead control
• Dimensions (example): 784 × 436 × 1555 mm
• Weight (example): 110 kg
• Power / Supply / Breaker: examples provided above
• Operating conditions: 5 - 40 °C, 20 - 80% RH (no condensation)
