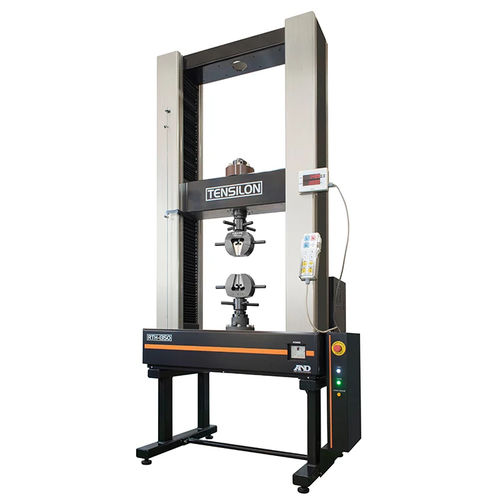

Compression testing machine RTH series

tension and compressiontensilecomputer-controlled

Overview
The TENSILON RTH is a universal material testing instrument from A&D. Designed as a world-class Class 0.5 testing machine, the RTH series features a high-stiffness load frame and improved measurement accuracy. The range delivers enhanced operability, a widened velocity range, high sampling speed and low-noise performance for industrial test environments.

Key features

• Accuracy: Class 0.5 testing machine
• Widened crosshead speed range: 0.0001–1500 mm/min (model-dependent)
• High-speed sampling: 0.2 ms to capture instantaneous load changes
• Low-noise design (typical values depend on model)
• Digital servo motor drive for precise motion control

Operator interface
Color touch panel provides clear visualization of parameters and simplifies test setup and operation.

TACT (TENSILON Advanced Controller for Testing)
TACT is a dedicated data processing system optimized for TENSILON. It supports industry-leading sampling (0.2 ms), data analysis, calculation, storage and enhances overall machine operability.

Screen images / Runtime / Mode
The interface displays test conditions, mode selection and runtime screens with graphical plots and numeric results to support analysis and reporting.

Display & Commander
Detachable digital display indicates load and displacement and mounts by magnets for flexible positioning. A compact commander module with ergonomic buttons and a jog dial enables precise manual crosshead control and convenient placement near the display.

Applications
A&D supplies a broad set of applied test jigs and devices for advanced testing needs, including:

• Strength measurement fixtures: screw-action jaws, air jaws, wedge-action jaws, compression cages and compression bending fixtures
• Elongation measurement devices: SG series strain-gauge distance measurement systems
• Environmental and temperature test devices: constant temperature/humidity chambers, high-temperature and ultra-low temperature equipment, high-humidity gas/vacuum devices and dipping test rigs

Technical specifications

• Model series: RTH series
• Motor: Digital servo mechanism
• Maximum capacity (by model): RTH-2430: 300 kN; RTH-2410: 100 kN; RTH-1350: 50 kN; RTH-1310: 10 kN; RTH-1225: 2.5 kN
• Effective test width: 590 mm (larger models), 420 mm (smaller models)
• Crosshead speed range: 0.0001–500 mm/min (RTH-2430), up to 1000 mm/min (other models), up to 1500 mm/min (RTH-1225)
• Crosshead speed accuracy: ±0.1%
• Crosshead position accuracy: ±0.1% of rating (±0.01 mm if rating < 10 mm)
• Load measurement accuracy: ±1% or ±0.5% of rating (model-dependent) within 1/1–1/1000 of load cell rating
• Load calibration: One-touch calibration with embedded calibration circuit and rating discrimination
• Sampling speed: 0.2 ms
• Noise (typical): ≤70 dBA / ≤65 dBA / ≤60 dBA (model-dependent)
• Dimensions (examples): RTH-2430: 1144 x 1040 x 2560 mm; RTH-2410: 1144 x 700 x 2275 mm; RTH-1350: 987 x 610 x 1655 mm
• Weight (examples): RTH-2430: 1450 kg; RTH-2410: 800 kg; RTH-1350: 350 kg; smaller models ~130 kg
• Power consumption / supply (examples): 5.1 kW / 7.6 kVA / 40 A (largest); 3.1 kW / 6.0 kVA / 30 A; 1.6 kW / 3.3 kVA / 20 A; 475 W / 1.7 kVA / 15 A
• Operating conditions: Temperature 5–40 °C, Humidity 20–80% RH (no condensation)
• Display: Load and displacement with 6-digit indication; displacement resolution down to 1/1000
