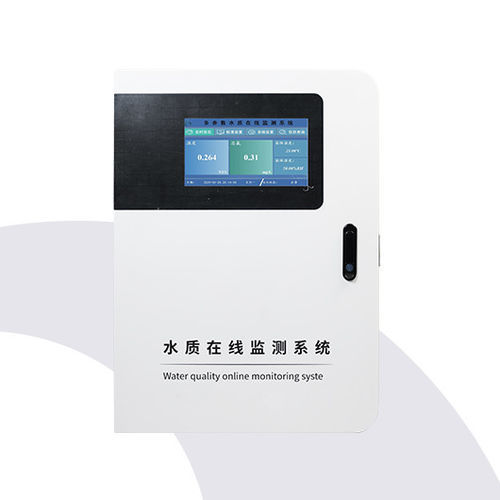

Water analyzer W750-CPT-DCL201

chlorinefor drinking watermonitoring

Product Overview The W750-CPT-DCL201 is a professional online water quality monitoring instrument designed for drinking water safety supervision. It utilizes advanced DPD colorimetric technology and integrates accurate detection of free chlorine, total chlorine, pH, laser turbidity, and temperature. This device provides real-time, reliable, and comprehensive water quality data support for drinking water supply systems. Its modular design, robust performance, and user-friendly operation make it suitable for a wide range of drinking water monitoring scenarios, ensuring compliance with international safety standards.

Working Principle The W750-CPT-DCL201 is a professional online multi-parameter monitor for drinking water quality supervision, providing accurate measurement of free chlorine, total chlorine, turbidity, pH, and temperature. Free chlorine and total chlorine detection is based on the classic and highly reliable DPD colorimetric method. N,N-diethyl-p-phenylenediamine (DPD) reacts with chlorine compounds in water to form a stable red-violet complex, which is measured by a high-sensitivity optical detection system and converted into precise concentration values according to the Lambert-Beer law. Turbidity is measured using laser scattering technology for fast and sensitive response to fine suspended particles. Integrated pH and temperature sensors enable real-time synchronous monitoring.

Product Features

• Scientific and Safe Structural Design
  • Two-layer front panel with separated water and electrical sections, eliminating risks such as short circuits caused by water ingress.
  • Modular analytical units allow flexible configuration based on monitoring needs and application scenarios.
  • 10-inch high-definition resistive touchscreen with intuitive user interface; supports both Chinese and English.
• High Reliability & Automated Maintenance
  • Integrated automatic cleaning system for free chlorine/total chlorine (DPD method) with adjustable cleaning intervals.
  • Supports external digital flow and pressure sensors for enhanced process control.
  • Comprehensive system monitoring includes cabinet temperature & humidity control, operation log recording, alarm logging, calibration record management, and over-standard event alerts.
• Powerful Data Management Capabilities
  • Standard RS485 with MODBUS protocol, expandable to 4–20 mA or GPRS wireless transmission.
  • Stores up to 1,000,000 data records with fast USB export.
  • Optional remote control and remote parameter setting, reducing the need for on-site visits.
• Stable Operation & Full System Protection
  • Built-in surge protection, power-off protection, and automatic recovery after power restoration.
  • Real-time self-diagnosis and alert functions.
  • IP56 protection rating, ensuring stable performance in demanding environments.

Application Scenarios

• Water treatment plants: Real-time residual chlorine monitoring for accurate disinfection control.
• Secondary water supply systems: Residential areas, office buildings, commercial complexes—monitor water quality variations and prevent secondary pollution.
• Schools, kindergartens, hospitals: Locations requiring stringent drinking water safety.
• Food processing facilities: Ensuring incoming water meets hygiene and safety standards.
• Municipal pipeline networks: Routine monitoring for pipeline maintenance and water quality management.

Key Technical Parameters
Category | Specification
Measured Parameters | Free Chlorine / Total Chlorine (DPD), pH, Turbidity (Laser), Temperature
Display | 10-inch HD Color Touchscreen (Resistive)
Languages | Chinese, English
Power Supply | 105–235 VAC, 50±1 Hz; 9–36 VDC (Optional)
Operating Environment | 0–50°C; 0–85% RH (Non-condensing)
Storage Environment | 0–50°C; 0–90% RH (Non-condensing)
Sample Conditions | Temperature: 1–45°C; Flow: 300–500 mL/min (with flow statistics); Pressure: ≤0.4 MPa
Data Output | RS485 (MODBUS), optional 4–20 mA or GPRS
Data Storage | Up to 1,000,000 records; USB export
System Protection | Surge protection, power-off protection & auto-recovery, system diagnosis & alarms
Protection Rating | IP56
Installation | Wall-mounted
Power Consumption | 37 W
Housing Material | 1.5 mm steel plate with powder coating; dual-layer PMMA window
Dimensions (H×W×D) | 750 × 550 × 260 mm
Certifications & Reports | Sensor CE, RoHS; Metrological Test Report available

Characteristics / Technical Specifications

• Model: W750-CPT-DCL201
• Measured Parameters: Free Chlorine, Total Chlorine, pH, Turbidity, Temperature
• Display: 10-inch HD Color Touchscreen
• Languages: Chinese, English
• Power Supply: 105–235 VAC, 50±1 Hz; 9–36 VDC (Optional)
• Operating Environment: 0–50°C; 0–85% RH
• Sample Conditions: Temperature 1–45°C, Flow 300–500 mL/min, Pressure ≤0.4 MPa
• Data Output: RS485 (MODBUS), optional 4–20 mA or GPRS
• Data Storage: Up to 1,000,000 records; USB export
• System Protection: Surge, power-off, auto-recovery, diagnosis, alarms
• Protection Rating: IP56
• Installation: Wall-mounted
• Power Consumption: 37 W
• Housing Material: 1.5 mm steel plate, powder coating, dual-layer PMMA window
• Dimensions: 750 × 550 × 260 mm
• Certifications: CE, RoHS; Metrological Test Report available
