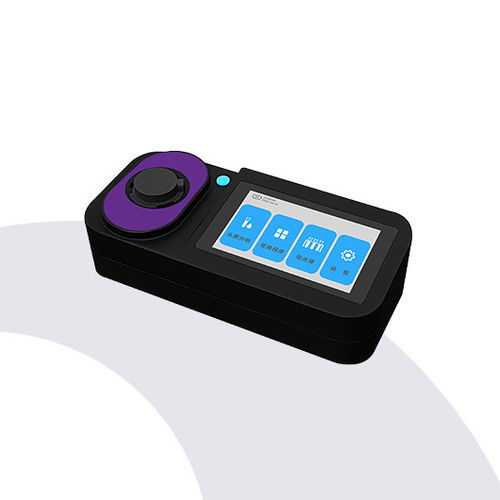

Water analyzer P-I-MP140-PRO

nitrogenchlorinenitrate

The Portable Multi-Parameter Water Quality Analyzer is a compact instrument for comprehensive water quality testing in both field and laboratory environments. It supports a wide selection of chemical parameters suitable for surface water, groundwater, municipal wastewater and industrial effluent.

Key features

• No preheating required; measurements can be performed without a light‑shielding cover
• 4.3‑inch color touch screen with Chinese and English menu interface
• Long-life LED optical system providing stable optical performance and precise measurements
• Fast and simple operation using pre‑packaged reagents and built‑in calibration curves
• Supports user-defined reagents allowing custom curve creation and calibration
• Dual power supply options: built‑in 8000 mAh lithium battery and external power adapter (Type‑C interface)

Available parameter groups

• Routine parameters: COD (Low / High / Ultra-high), Ammonia Nitrogen (Low / High), Total Phosphorus (Low / High), Total Nitrogen (Low / High), Nitrate Nitrogen, Permanganate Index (CODMn)
• Disinfectants: Free Chlorine (Low / High), Total Chlorine (Low / High), Chlorine Dioxide, Ozone (Low / High), Active Oxygen, Hydrogen Peroxide (Low), Available Chlorine

Technical specifications

• Display — 4.3‑inch color touch screen
• Light source — LED
• Absorbance range — 0–3 Abs
• Optical stability — ≤ ±0.003 Abs (20 minutes)
• Sample cell — Ø16 mm, Ø25 mm
• Power supply — 8000 mAh lithium battery (built‑in) and external adapter (Type‑C interface)
• Data interface — Type‑C
• Operating environment — 5–40 °C, ≤85% RH (non‑condensing)
• Protection rating — IP65
• Dimensions (L × W × H) — 210 × 95 × 52 mm
