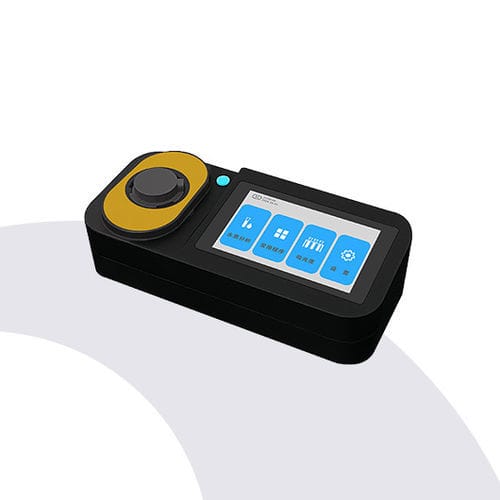

Nitrogen analyzer P-I-MP140-POOL

waterchlorineLED

The portable multi-parameter water quality analyzer for swimming pools is a handheld instrument for rapid, reliable measurement of disinfectant residues and key water-quality parameters in pools and related facilities.

Product features

• No preheating required; measurements possible without a light-shielding cover.
• 4.3-inch color touchscreen with Chinese and English menu interface.
• Long-life LED light source for stable optical performance and accurate results.
• Quick, simple operation using ready-to-use reagents and built-in calibration curves.
• Supports user-defined reagents and custom calibration curves.
• Dual power options: built-in 8000 mAh lithium battery and external power adapter.

Measured parameters

• Free / Total Chlorine — ranges: 0.02–3.00 mg/L and 0.1–10.0 mg/L; reagents/tests: 100 tests.
• Chlorine Dioxide — range: 0.04–5.00 mg/L; reagents/tests: 100 tests.
• Ozone — ranges: 0.01–2.50 mg/L and 0.1–6.0 mg/L; reagents/tests: 100 tests.
• Color — range: 0–500 (no reagent/tests specified).
• Ammonia Nitrogen (Nessler) — range: 0.02–2.50 mg/L; reagents/tests: 100 tests.
• pH — range: 6.5–8.5; reagents/tests: 100 tests.

Technical specifications

• Display: 4.3-inch color touchscreen.
• Light source: LED.
• Absorbance range: 0–3 Abs.
• Optical stability: ≤ ±0.003 Abs (20 minutes).
• Sample cell: Ø16 mm, Ø25 mm.
• Power supply: 8000 mAh lithium battery (built-in) and external adapter option.
• Data interface: Type-C.
• Operating environment: 5–40 °C, ≤85% RH (non-condensing).
• Protection rating: IP65.
• Dimensions (L × W × H): 210 × 95 × 52 mm.
• Weight: 550 g.
