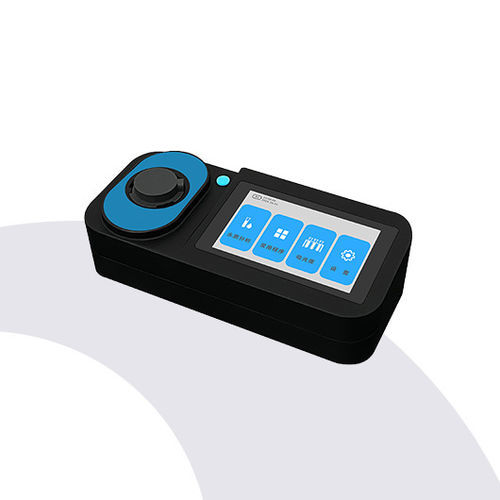

Compact colorimeter P-I-MP700

portablehandheldfor water analysis

Overview
This pocket colorimeter is a portable, multi-parameter disinfectant analyzer intended for rapid and accurate testing of drinking and environmental waters in both field and laboratory environments.

Applications

• Detection of disinfectant parameters in surface water and groundwater
• Monitoring in domestic sewage and industrial wastewater
• On-site rapid and emergency testing
• Laboratory-based water quality analysis for environmental monitoring, water treatment and industrial hygiene

Key Features

• 4.3-inch color touchscreen with Chinese/English interface
• No preheating or light-shielding required for measurement
• Long-life LED light source for stable optical performance
• Supports pre-made reagents and user-defined calibration curves (create curves with self-prepared reagents)
• Dual power supply: 8000mAh lithium battery plus external adapter
• IP65 protection for reliable portable field use
• Compact and lightweight (550 g) for easy transport
• Type-C data transmission and Bluetooth printing support

Technical specifications

• Screen: 4.3-inch color touchscreen
• Light source: LED
• Optical stability: ≤±0.003Abs (20 minutes)
• Sample vials: φ16 mm, φ25 mm
• Power supply: 8000mAh lithium battery (dual supply with external adapter)
• Data transmission: Type-C (also supports Bluetooth printing)
• Operating environment: 5–40°C, ≤85% RH (no condensation)
• Protection class: IP65
• Dimensions: 210 mm × 95 mm × 52 mm
• Weight: 550 g
