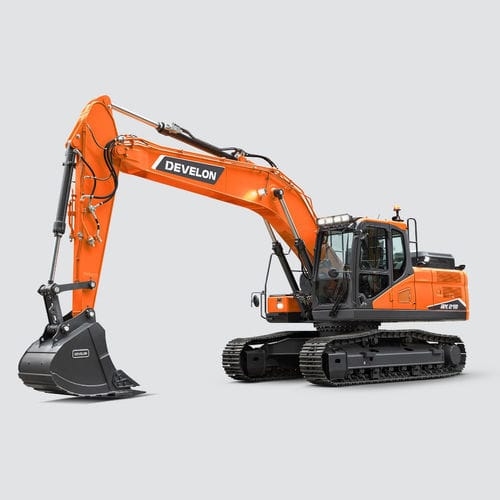

Large excavator DX210-7

crawlerTier 4 - finalconstruction

Overview
The Develon DX210-7/LC-7/NLC-7 excavators deliver efficient fuel consumption and Stage V emissions compliance for construction and earthmoving applications. Available in three undercarriage variants to match transport, stability and local regulation requirements.

Undercarriage options

• DX210-7 – standard undercarriage: 2800 mm width with 600 mm shoes / 2900 mm with 700 mm shoes / 3000 mm with 800 mm shoes (balanced transportability and low ground pressure).
• DX210LC-7 – long & wide undercarriage: 2990 mm width with 600 mm shoes (enhanced stability).
• DX210NLC-7 – long & narrow undercarriage: 2540 mm width with 500 mm shoes (for compliance with specific national regulations).

Machine Specs
Maximum power: 166 hp
Operating weight: 21.900 kg
Bucket capacity (standard): 0.92 m3
Emission standard: Stage V
Engine: Develon DL06V (6 cylinders) — 124 kW / 166 HP @ 1800 RPM

Hydraulic & Working Equipment
Arm length: 2400 – 2900 mm
Boom length: 5600 – 5850 mm
Bucket breakout (Normal / Power Boost): 15.5 - 16.5 t
Arm breakout (Normal / Power Boost): 10.8 - 11.4 t
Main pumps max flow: 2 × 210.6 l/min
Buckets available (range): 0.51 - 1.32 m3

Options & Attachments

• Pins kits
• H‑class buckets (Heavy Duty)
• S‑class buckets (Severe / Rock Duty)
• Hydraulic breakers — HB series

Technical specifications

• Model name: DX210-7 (variants: DX210-7, DX210LC-7, DX210NLC-7)
• Engine model: Develon DL06V, 6 cylinders
• Engine power rating: 124 kW / 166 HP @ 1800 RPM
• Operating weight: 21.900 kg
• Standard bucket capacity: 0.92 m3 (range 0.51 - 1.32 m3)
• Emission compliance: Stage V
• Arm length: 2400 – 2900 mm
• Boom length: 5600 – 5850 mm
• Bucket (Normal / Power Boost): 15.5 - 16.5 t
• Arm (Normal / Power Boost): 10.8 - 11.4 t
• Main pumps max flow: 2 × 210.6 l/min
• Available undercarriage variants: standard, long & wide (LC), long & narrow (NLC)
