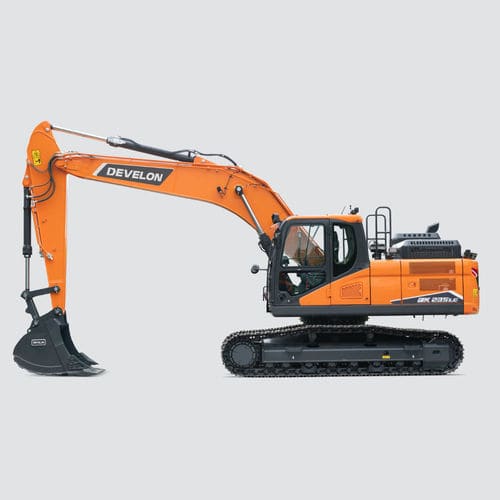

Medium excavator DX235LC-7

trackedTier 4 - finaldiesel

Overview
The DX235LC-7 tracked excavator is designed for heavy-duty earthmoving and construction operations. It delivers 129 kW (173 hp) at 1800 rpm and is supplied with a standard 1.3 m³ bucket and a bucket capacity range of 0.81–1.05 m³.

Engine & Emissions
Equipped with the Develon DL06V, a Stage V compliant 6‑cylinder engine. Emissions are treated by Selective Catalytic Reduction (SCR), a Diesel Oxidation Catalyst (DOC) and a Diesel Particulate Filter (DPF) to meet strict regulatory limits.

Options & Attachments

• PIN KITS
• H-CLASS BUCKETS (HEAVY DUTY)
• S-CLASS BUCKETS (SEVERE / ROCK DUTY)
• HYDRAULIC BREAKERS - HB SERIES

Key specifications

• Maximum power: 173 hp
• Engine power: 129 kW / 173 hp @ 1800 rpm
• Operating weight: 23,200 kg
• Bucket (standard): 1.3 m³
• Bucket capacity (range): 0.81 – 1.05 m³
• Emission standard: Stage V
• Engine: Develon DL06V
• Number of cylinders: 6
• Arm length: 2400 – 2900 mm
• Boom length: 5700 – 5850 mm
• Bucket digging force (normal / power boost): 15.6 - 16.5 t
• Arm digging force (normal / power boost): 10.9 - 13.4 t
• Main pumps max flow: 2 × 210.6 l/min
