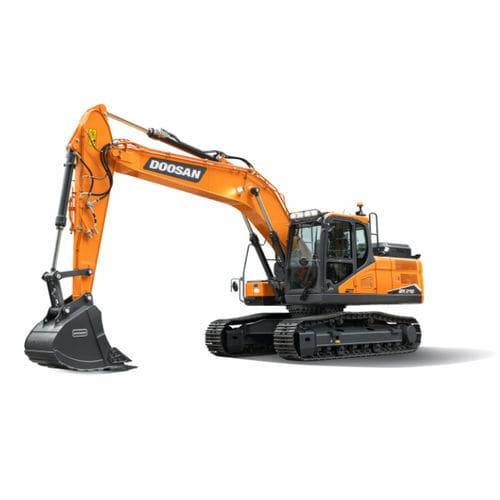

Large excavator DX210LC-7

crawlerTier 4 - finaldiesel

Overview
The Develon DX210-7/LC-7/NLC-7 series offers powerful, fuel-efficient excavators designed for construction and earthmoving tasks. The DX210LC-7 features a long and wide undercarriage optimized for maximum stability and is available with Stage V emission compliance and a Develon DL06V engine delivering 124 kW / 166 HP @ 1800 RPM.

Undercarriage options

• DX210-7: Standard undercarriage balancing transportability and low ground pressure — widths: 2800 mm (with 600 mm shoes) / 2900 mm (with 700 mm shoes) / 3000 mm (with 800 mm shoes).
• DX210LC-7: Long and wide undercarriage for best stability — width: 2990 mm with 600 mm shoes.
• DX210NLC-7: Long and narrow undercarriage to meet specific regulations — width: 2540 mm with 500 mm shoes.

Options & Attachments (high level)

• Pin kits
• H-Class buckets (heavy duty)
• S-Class buckets (severe / rock duty)
• Hydraulic breakers - HB series

Machine Specifications (table)
Maximum power: 124 kW / 166 HP @ 1800 RPM
Operating weight: 22,300 kg
Bucket capacity (standard): 0.92 m3
Emission standard: Stage V
Engine: Develon DL06V
Number of cylinders: 6

Hydraulic / Boom / Arm data (table)
Arm length: 2400 – 2600 mm
Boom length: 5600 – 5850 mm
Bucket digging force (Normal / Power boost): 15.6 - 16.5 t
Arm digging force (Normal / Power boost): 10.8 - 11.4 t
Main pumps max flow: 2 × 210.6 l/min
Buckets (range): 0.51 - 1.32 m3
