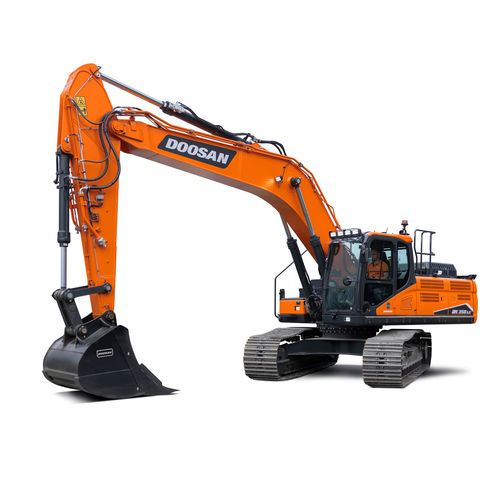

Large excavator DX350LC-7K

crawlerTier 4 - finaldiesel

Product overview
The DX350LC-7K is a heavy-duty hydraulic excavator designed for high-efficiency earthmoving and construction tasks. It features a new-generation Stage V compliant engine without exhaust gas recirculation (EGR), delivering improved combustion characteristics and reduced particulate formation. The design minimises maintenance needs for the diesel particulate filter (DPF).

Key features

• Stage V compliant engine with no EGR to increase combustion air and temperature
• Reduced particulate emissions and low-maintenance DPF
• DL08V engine delivering 213 kW (290 HP) @ 1800 rpm (SAE J1995)
• High hydraulic flow with main pumps: 2 x 350 l/min
• Robust digging forces and long reach for heavy excavation tasks

Main machine data
Operating weight: 36,100 kg
Engine model: DL08V
Engine power: 213 kW (290 HP) @ 1800 rpm (SAE J1995)
Main pumps max flow: 2 x 350 l/min
Number of cylinders: 6
Travel speed: 3.4 / 5.6 km/h
Maximum traction: 37.9 t

Excavation / performance data
Buckets (available range): 1.25 – 2.32 m³
Tail swing radius: 3530 mm
Bucket digging force: 25.9 t
Arm digging force: 23.3 t
Max. digging reach: 12,165 mm
Max. digging depth: 8,125 mm
Max. digging height: 13,175 mm

Options & accessories

• Pin kits
• Buckets class H (heavy duty)
• Buckets class S (severe/rock duty)
• Hydraulic breakers – HB series

Technical specifications

• Operating weight: 36,100 kg
• Engine: DL08V, 6 cylinders
• Engine power: 213 kW (290 HP) @ 1800 rpm (SAE J1995)
• Main pumps max flow: 2 x 350 l/min
• Travel speed: 3.4 / 5.6 km/h
• Maximum traction: 37.9 t
• Buckets: 1.25 – 2.32 m³
• Max. digging reach: 12,165 mm
• Max. digging depth: 8,125 mm
• Max. digging height: 13,175 mm
