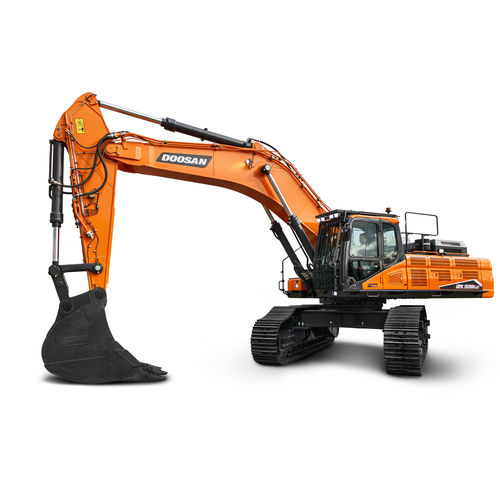

Large excavator DX530LC-7K

crawlerTier 4 - finaldiesel

Overview
Develon DX530LC-7K hydraulic crawler excavator designed for heavy-duty earthmoving and loading operations. Equipped with the Scania DC13 engine (Stage V), it delivers high hydraulic performance and fuel efficiency for demanding applications.

Highlights

• Operating weight: 52,900 kg
• Bucket range: 1.71 – 3.6 m³
• Engine: Scania DC13
• Maximum power: 394 HP (294 kW) @ 1800 rpm (SAE J1995)
• Main pumps max flow: 2 x 390 l/min
• Number of cylinders: 6
• Travel speed: 3.2 / 5.6 km/h
• Maximum traction: 45.7 t
• Tail swing radius: 3,800 mm
• Max. digging reach / depth / height: up to 19,615 / 15,125 / 14,435 mm

Semi-SLR & SLR variants (key values)
Operating weight (Semi-SLR/SLR): 51,900 / 52,200 kg
Buckets (Semi-SLR/SLR): 1.27 / 0.92 m³
Maximum power: 394.2 HP
Engine power: 294 kW (394 HP) @ 1800 rpm (SAE J1995)
Main pumps max flow: 2 x 390 l/min
Number of cylinders: 6
Travel speed: 3.2 / 5.6 km/h
Maximum traction: 45.7 t
Bucket capacity (Semi-SLR/SLR): 1.27 / 0.92 m³
Tail swing radius: 3,800 mm
Max. digging reach (Semi-SLR/SLR): 16,060 / 19,615 mm
Max. digging depth (Semi-SLR/SLR): 11,759 / 15,125 mm
Max. loading height (Semi-SLR/SLR): 9,800 / 11,890 mm
Max. digging height (Semi-SLR/SLR): 12,755 / 14,435 mm
Bucket / Arm (Normal / Power Up) - Semi SLR: 19.2 / 20.3 t (Bucket), 13.8 / 15.1 t (Arm); SLR: 14.3 / 15.2 t (Bucket), 10.9 / 11.9 t (Arm)

Options & Attachments

• Pin kits
• H-class buckets (heavy duty)
• S-class buckets (severe / rock duty)

Characteristics / Technical specifications

• Model: DX530LC-7K
• Manufacturer: Develon
• Operating weight: 52,900 kg (varies by configuration)
• Bucket capacities: 0.92 – 3.6 m³ depending on configuration
• Engine: Scania DC13 (Stage V), 294 kW (394 HP) @ 1800 rpm (SAE J1995)
• Main pumps: 2 x 390 l/min
• Cylinders: 6
• Travel speed: 3.2 / 5.6 km/h
• Tail swing radius: 3,800 mm
• Max. digging reach: up to 19,615 mm (SLR)
• Max. digging depth: up to 15,125 mm (SLR)
• Max. loading height: up to 11,890 mm (SLR)
• Max. digging height: up to 14,435 mm (SLR)
