Medium excavator DX140W-7K

wheeledTier 4 - finaldiesel

Overview

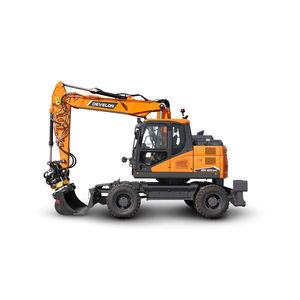

Develon DX140W-7K wheeled excavator from the WEX-7K series delivers redesigned controls and technologies for smooth operation, high productivity, improved stability, operator comfort and fuel efficiency. Suited for civil engineering, utilities, road maintenance and urban construction where mobility and digging performance are required.

Details & Highlights

• Optimized weight distribution and longer wheelbase with cast counterweight for excellent stability
• Optional heavier counterweights available for use with large attachments
• Standard rear and right-side cameras; optional 360° all-around view (AVM) with ultrasonic detection for enhanced safety
• Anti-slip steps and platforms, guard rails on upper structure and large side mirrors for improved operator safety and accessibility
• Powerful LED work lights: 7 standard (option for 4 additional lights)
• Travel alarm provided as standard

Options & Attachments

• Pin kits
• Hydraulic breakers — HB series
• Additional counterweights and LED lighting pack

Technical specifications (excerpt)

• Model: DX140W-7K
• Engine: Develon DL06V — 113 kW / 152 hp at 2000 rpm
• Emission standard: Stage V
• Operating weight: 15,800 kg
• Bucket capacity (standard): 0.59 m³
• Overall width: 2495 mm — Wheelbase: 2800 mm — Track width: 1944 mm
• Travel speed (creep / low / high): 2.7 / 9.2 / 37 km/h
• Maximum traction force: 8100 kg
• Minimum turning radius: 6456 mm
• Maximum swing speed / torque: 11.8 rpm / 3744 kgf·m
• Max. digging reach (Mono / Arti boom): 7585 mm / 8700 mm
• Max. digging depth (Mono / Arti boom): 4490 mm / 5455 mm
• Main pumps max flow: 2 × 167 l/min
