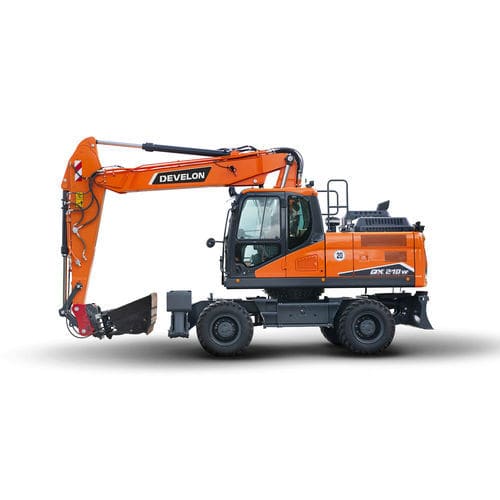

Large excavator DX210W-7K

wheeledTier 4 - finaldiesel

Overview
Develon DX210W-7K wheeled excavator combines redesigned components and new technologies to deliver smooth control, high productivity and stability, improved operator comfort and better fuel efficiency. Suitable for diverse wheeled-excavation applications on construction and infrastructure sites.

Key features

• Optimized weight distribution and extended wheelbase with cast counterweight for enhanced stability
• Optional heavier counterweights available for large attachments
• Rear and right-side cameras as standard
• Anti-slip steps and platforms with guard rails on the upper structure
• Large side mirrors for improved visibility
• 7 powerful LED work lights (option for 4 additional lights)
• Optional 360° all-around view camera (AVM) integrable with ultrasonic detection
• Travel alarm for movement safety

Options & Attachments

• Pin kits
• H-class buckets (heavy-duty)
• Hydraulic breakers - HB series

Specifications (table)
Maximum power: 189 hp
Operating weight: 21,900 kg
Bucket capacity: 0.86 m³
Emission standard: Stage V
Engine: Develon DL06V
Engine power: 141 kW / 189 hp at 1900 rpm
Main pumps max flow: 2 x 236 l/min
Maximum swing speed: 9.8 rpm
Maximum swing torque: 6387 kgf·m
Travel speed (creep/low/economy/high): 4 / 9 / 33 / 34 km/h
Maximum traction force: 12,000 kg
Minimum turning radius: 7.2 m
Max. digging reach: 9,410 mm / 9,415 mm
Max. digging depth: 5,555 mm / 5,605 mm
Max. loading height: 6,985 mm / 7,620 mm
Max. digging height: 9,770 mm / 10,530 mm

Technical specifications

• Model: DX210W-7K
• Maximum power: 189 hp (141 kW at 1900 rpm)
• Operating weight: 21,900 kg
• Bucket capacity: 0.86 m³
• Emission standard: Stage V
• Engine type: Develon DL06V
• Main pumps max flow: 2 x 236 l/min
• Maximum swing speed: 9.8 rpm
• Maximum swing torque: 6387 kgf·m
• Travel speed (creep/low/economy/high): 4 / 9 / 33 / 34 km/h
• Maximum traction force: 12,000 kg
• Minimum turning radius: 7.2 m
• Max. digging reach: 9,410 mm / 9,415 mm
• Max. digging depth: 5,555 mm / 5,605 mm
• Max. loading height: 6,985 mm / 7,620 mm
• Max. digging height: 9,770 mm / 10,530 mm
