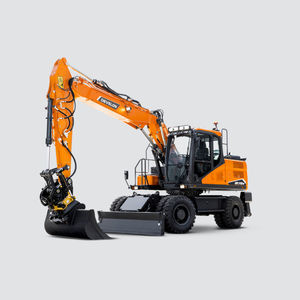

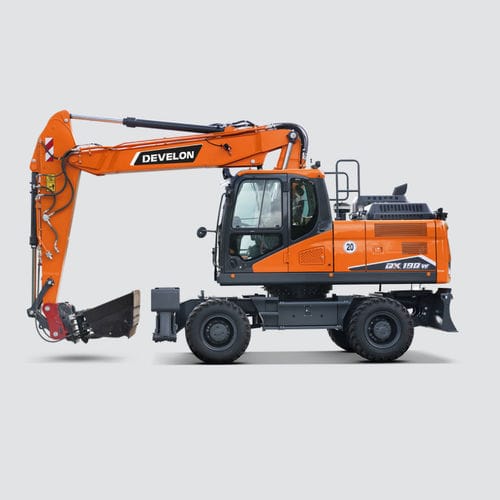

Medium excavator DX190W-7K

wheeledTier 4 - finalconstruction

Overview
The DX190W-7K wheeled excavator delivers redesigned components and integrated technologies to improve operational smoothness, productivity, stability, operator ergonomics and fuel efficiency. Key configurations suit urban construction, utilities and material handling operations.

Key figures

• Maximum power: 174 hp (129.8 kW @ 1900 rpm)
• Operating weight: 18.320 kg
• Bucket capacity: 0.8 m³

Stability & safety
Optimized weight distribution, longer wheelbase and cast counterweight provide enhanced stability. Optional heavier counterweights are available for large attachments. Standard equipment includes rear and right-side cameras, large side mirrors, anti-slip steps and platforms, guard rails on the upper structure, 7 LED work lights and travel alarm. Optional 360° all-around view (AVM) can be integrated with ultrasonic detection for obstacle and personnel awareness.

Specifications

• Emission standard: Stage V
• Engine: Develon DL06V
• Engine power: 129.8 kW / 174 hp at 1900 rpm
• Main pumps max flow: 2 × 200 l/min
• Maximum swing speed: 11.8 rpm
• Maximum swing torque: 5030 kgf·m
• Travel speed (creep / low / economy / high): 3.5 / 10 / 37 km/h
• Maximum traction force: 11.800 kg
• Minimum turning radius: 6125 mm
• Max. digging reach: 8.875 mm / 9.750 mm
• Max. digging depth: 5.320 mm / 5.915 mm
• Max. loading height: 6.520 mm / 8.065 mm
• Max. digging height: 9.195 mm / 10.885 mm

Options & accessories

• Pin kits and attachment-specific counterweights available
