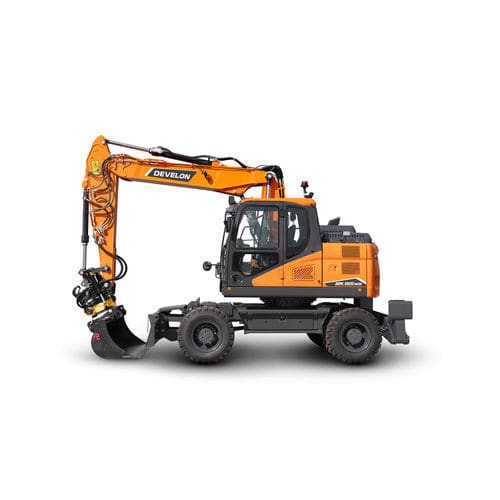

Medium excavator DX165WR-7K

wheeleddieselconstruction

Overview The Develon DX165WR-7K wheeled excavator features redesigned components and updated technologies to deliver smooth operation, high productivity, improved stability, operator comfort and better fuel efficiency. It is suited to urban construction, material handling and jobs that require mobility without sacrificing lifting stability.

Key features

• Optimized weight distribution with longer wheelbase, cast counterweight and optional heavier counterweights for large attachments to enhance stability.
• Rear and right-side cameras as standard; optional 360° all-around view camera (AVM) with ultrasonic detection for improved site safety.
• Anti-slip steps and platforms, guard rails on the upper structure and large side mirrors for safer on-site access and visibility.
• Seven LED work lights fitted as standard, with up to four additional lights available as an option; travel alarm included.
• Engineered for smooth controls, consistent productivity, operator comfort and reduced fuel consumption.

Options & Attachments

• Pin kits
• H-class buckets (heavy duty)
• Hydraulic breakers - HB series

Machine specifications (summary) Maximum power: 137 hp
Operating weight: 17,300 kg
Bucket capacity: 0.64 m3
Emission standard: Stage V
Engine: Perkins 1204J
Engine power: 102.1 kW / 137 hp at 2200 rpm
Maximum swing speed: 14.6 rpm
Maximum swing torque: 3608 kgf·m
Travel speed (creep / low / high): 3 / 10 / 34 km/h
Maximum traction force: 10,000 kg
Minimum turning radius: 6456 mm
Gradeability: 62 % (32°)
Main pumps max flow: 2 × 176 l/min

Technical specifications

• Model: DX165WR-7K
• Engine make: Perkins 1204J
• Rated power: 102.1 kW / 137 hp at 2200 rpm
• Operating weight: 17,300 kg
• Bucket capacity: 0.64 m3
• Emission compliance: Stage V
• Maximum swing speed: 14.6 rpm
• Maximum swing torque: 3608 kgf·m
• Travel speeds (creep / low / high): 3 / 10 / 34 km/h
• Maximum traction force: 10,000 kg
• Minimum turning radius: 6456 mm
• Gradeability: 62 % (32°)
• Main pump flow: 2 × 176 l/min
• Standard safety/visibility: rear and right-side cameras, anti-slip steps and platforms, guard rails on upper structure, travel alarm
• Optional safety/visibility: 360° AVM with ultrasonic detection, additional LED work lights (up to +4)
